PRODUCT DETAILS
A202 Pressure Vessel Carbon Steel Coil Description
JIS G3101 SS400 is a common carbon structural steel grade. Other grades of JIS G3101 are ss330, ss490 and ss540. Relevant product types include steel coils, steel plates, steel sections, and steel pipes.
Product Parameters
| Product Name | A202 Pressure Vessel Carbon Steel Coil |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 45mm-2200mm |
| Length | Custom Size |
| Thickness | Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Mechanical Properties
| A202 | Tensile Strength kis[MPa] | Yield Strength kis[MPa] | Elongation Gauge Length 8 in.[200mm],% | Elongation Gauge Length 2in.[50mm],% |
|---|---|---|---|---|
| Grade A | 75-95 [515-655] | 45 [310] | ≧ 16 | ≧ 19 |
| Grade B | 85-110 [585-760] | 47 [325] | ≧ 15 | ≧ 18 |
International Standard Grade Comparison
| China | USA | Germany | Japan | France | U.K. | internationality |
|---|---|---|---|---|---|---|
| GB3077 | AlSI | DIN | JIS | NE | BS | ISO |
| 20Mn2 | 1320 1221 | 20Mn5 | SMn21 | 20M5 | 150M19 | - |
| 30Mn2 | 1330 | 30Mn5 | SMn24 | 32M5 | 150M28 | - |
| 35Mn2 | 1335 | 36Mn5 | SMnl | 35M5 | 150M36 | - |
| 40Mn2 | 1340 1341 | - | SMn2 | 40M5 | - | - |
| 45Mn2 | 1345 | 46Mn7 | SMn3 | 45M5 | - | - |
| 50Mn2 | 1052 | 50Mn7 | - | 55M5 | - | - |
| 20MnV | - | 20MnV6 | - | - | - | |
| 30Mn2MoW | - | -- | - | - | - | |
| 27SiMn | - | 27MnSi5 | - | - | - | |
| 35SiMn | - | 37MnSi5 | - | 38MS5 | - | - |
| 42SiMn | - | 38MnSi4 46MnSi4 | - | 38MS5 | - | - |
| 20SiMn2MoV | - | - | - | - | - | - |
| 25SiMn2MoV | - | - | - | - | - | - |
| 37SiMn2MoV | - | - | - | - | - | - |
| 40B | 14B35 | 35B2 | - | - | - | - |
| 45B | 50B46H | 45B2 | - | - | - | - |
| 50B | 14B50 | - | - | - | - | - |
| 4OM∏B | 15B41 | - | - | - | - | - |
| 45MnB | 15B48 50B44 | - | - | - | - | - |
| 20Mn2B | - | - | - | - | - | - |
| 20MnMoB | 80B20 | - | - | - | - | - |
| 15MnVB | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| 20MnVB | - | - | - | - | - | - |
| 40MnVB | - | - | - | - | - | - |
| 20MnTiB | - | - | - | - | - | - |
| 25MnTiBRE | - | - | - | - | - | - |
| 2OSiMnVB | - | - | - | - | - | - |
| 15Cr | 5015 5115 | 15Cr3 | SCr21 | 12C3 | 523A14 523M15 | - |
| 15CrA | - | - | - | - | - | - |
| 20Cr | 5120 | 20Cr4 | SCr22 | 18C3 18C4 | 527A19 527M20 | 683/11 20Cr4 20CrS4 |
| 30Cr | 5130 | 28Cr4 | SCr2 | 28C4 32C4 | 530A30 530A32 | - |
| 35Cr | 5135 | 34Cr4 37Cr4 | SCr3 | 38C4 | 530A36 | 683/8 3、 3a、 3b |
| 40Cr | 5140 | 38Cr4 41Cr4 | SCr4 | 42C4 | 530A40 530M40 | 683/1 4、 4a^ 4b |
| 45Cr | 5145 | 42Cr4 | SCR5 | 45C4 | - | - |
| 50Cr | 5150 5152 | - | - | 50C4 | En48 | - |
| 38CrSi | - | - | - | - | - | - |
| 12CrMo | 4119 | 13CrMo44 | - | 12CD4 15CD2 | - | - |
| 15CrMo | ASTM A-387Gr. B | 15CrMo5 16CrMo44 | SCM21 | 15CD4. 05 | BS1653 | - |
| 20CrMo | 4118 | 20CrMo5 22CrMo4 | SCM22 | 18CD4 20CD4 | CDS 12 CDSllO | - |
| 30CrMo | 4130 | 25CrMo4 | SCM2 | 30CD4 | CDS 13 | - |
| 30CrMoA | - | 32CrMol2 3ICRMo12 | - | - | - | - |
| 35CrMo | 4135 4137 | 34CrMo4 35CrMo4 | SCM3 | 35CD4 | 78A37 | 683/1 C35ea C35eb |
| 42CrMo | 4140 4142 | 41CrMo4 42CrMo4 | SCM4 | 40CD4 42CD4 | 708M40 708A42 709M40 | 683/1 3 |
| 12CrMoV | - | - | - | - | - | - |
| 35CrMoV | - | 35CrMoV5 | - | - | - | - |
| 12CrlMoV | - | 13CrMoV4.2 | - | - | - | - |
| 25Cr2MoVA | - | 24CrMoV5.5 | - | - | - | - |
| 25Cr2MolVA | - | - | - | - | - | - |
| 20CR3MoWVA | - | 21CrVMoW12 | - | - | - | - |
| 38CrMoΛl | 6370 (ΛMS) | 34CrAlMo5 41CrAlMo7 | SACM645 | 40CAD6.12 | 905M39 | 683/10 41CrAlMo74 |
| 20CrV | 6120 | 22CrV4 | - | 22CrV4 | - | - |
| 40CrV | 6140 | 42CrV | - | 42CrV4 | - | - |
| 50CrVA | 6150 | 50CrV4 | SUPlO | 50CV4 | 735A50 | - |
| 15CrMn | - | 16MnCr5 | - | 16MC5 | - | - |
| 20CrMn | 5120 | 20MnCr5 | SMC21 | 20MC5 | - | - |
| 40CrMn | 5140 | - | SMC3 | - | - | - |
| 20CrMnSi | - | - | - | - | - | |
| 25CrMnSi | - | - | SMKl | - | - | - |
| 30CrMnSi | - | - | - | - | - | - |
| 30CrMnSiA | - | - | - | - | - | - |
| 35CrMnSiA | - | - | SMK2 | - | - | - |
| 20CrMnMo | 4119 | 20CrMo5 | SCM23 | - | - | - |
| 40CrMnMo | 4140 | - | - | - | - | - |
| 20CrMnTi | - | - | SMK22 | - | - | - |
| 30CrMnTi | - | 30MnCrTi4 | - | - | - | - |
| 20CrNi | 3120 | 20NiCr6 | - | 20NC6 | 637A16 637M17 | - |
| 40CrNi | 3140 | 46NiCr6 | SNCl | 35NC6 | 640A35 640M40 | - |
| 45CrNi | 3145 | 45NiCr6 | - | - | - | - |
| 50CrNi | 3150 | - | - | - | - | - |
| 12CrNi2 | 3115 | 14NiCrlO | SNC21 | IONCll 14NC11 | - | - |
| 12CrNi3 | 3310 | 13NiCrl2 | SNC22 | 10NC12 14NC12 | 655A12 655M13 | - |
| 20CrNi3 | - | 22NiCrl4 | - | 20NC11 | - | - |
| 30CrNi3 | - | 28NiCrlO 31NiCrl4 | SNC2 | 30NC11 30NC12 | - | - |
| 37CrNi3 | - | 35NiCrl8 | SNC3 | 35NC15 | - | - |
| 12Cr2Ni4 | E3310 | 14NiCrl8 | - | 12NC15 | - | - |
| 20Cr2Ni4 | E3316 | 22NiCrl4 | - | 20NC14 | 659A15 659M15 | - |
| 20CrNiMo | 8620 8720 | 20NiCrMo2 21NiCrMo2 | - | 20NCD2 | 805A20 805M20 | - |
| 40CrNiMoA | 4340 9840 | 36NiCrMo4 40NiCrMo6 | SNCM8 | 35NCD5 40NCD3 | 817M40 816M40 | - |
| 45CrNiMoVA | 4437 | - | SNCM9 | - | - | - |
| 18Cr2Ni4WA | ||||||
| 25Cr2Ni4WA |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Coil solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Carbon Steel Coil
SEND INQUIRY FOR A202 Pressure Vessel Carbon Steel Coil
Please leave your specific requirements (size, grade, quantity, destination port). Our sales engineer will reply within 2 hours.

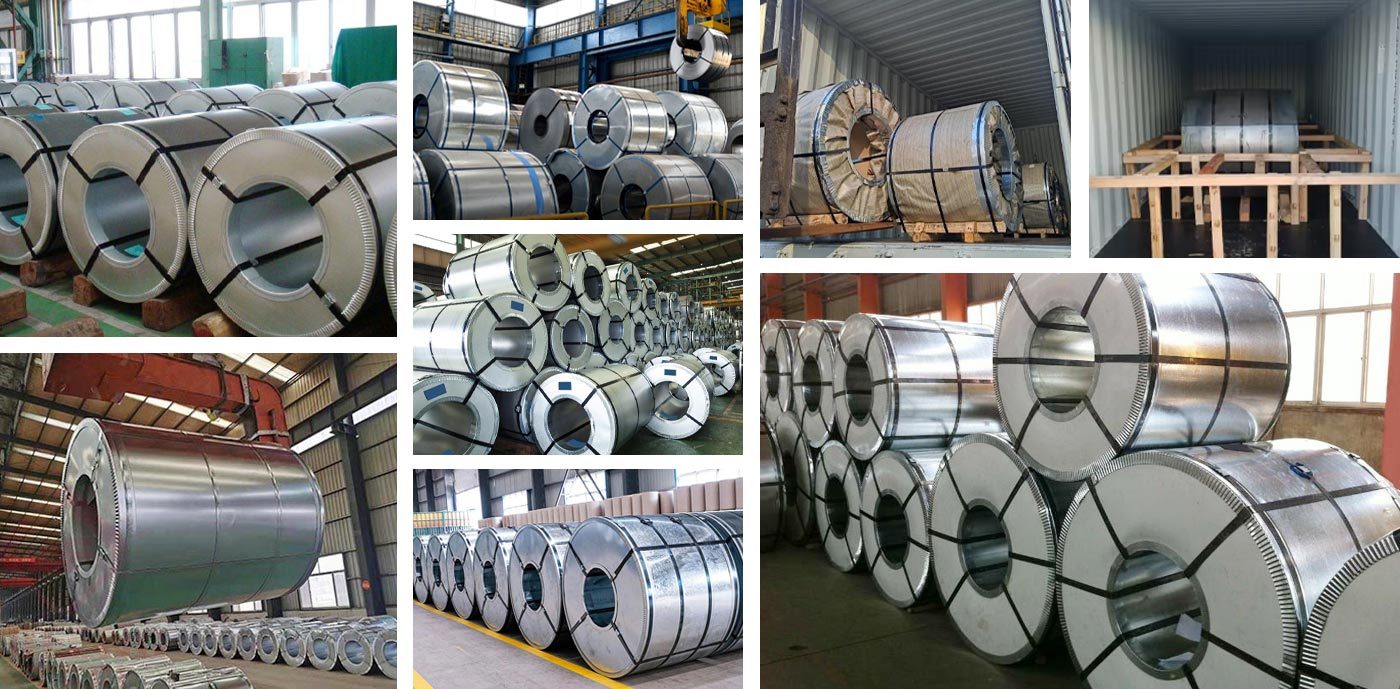

FACTORY WORKSHOP
