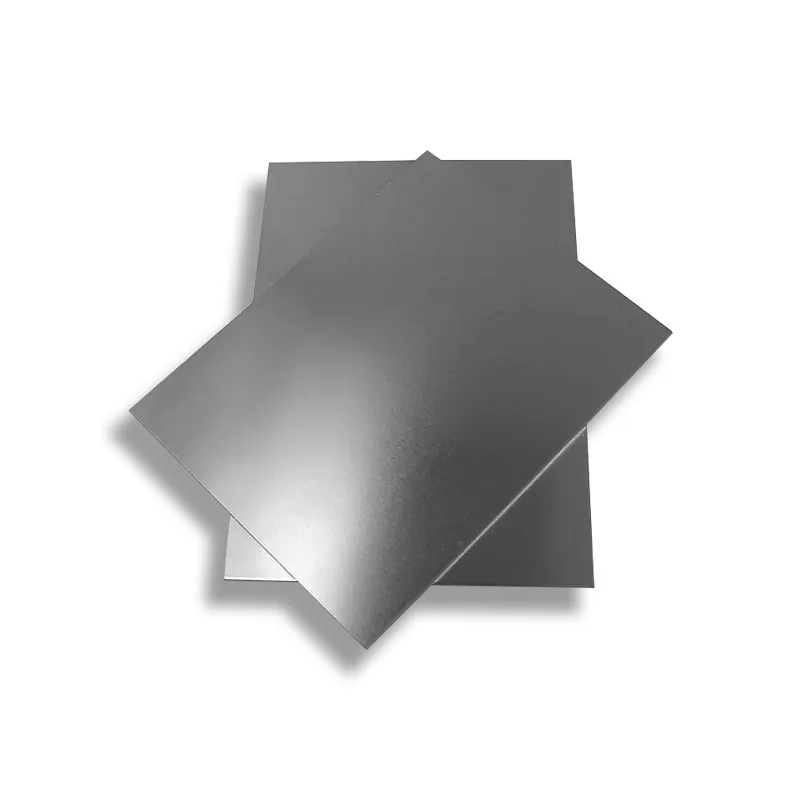

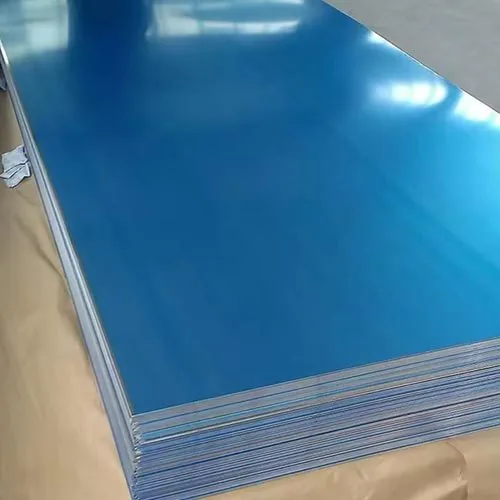

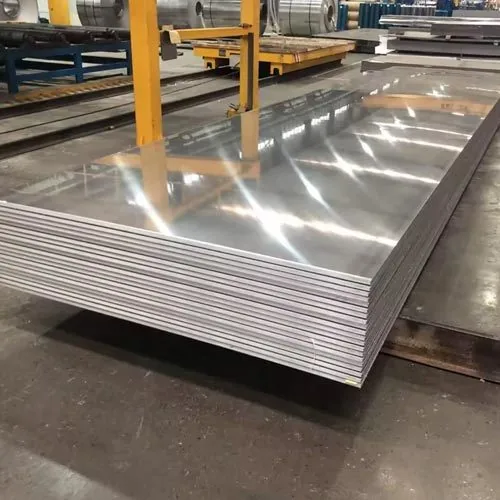

1070 Aluminum Plate
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
Click to Zoom
Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC
1070 Aluminum Plate - Technical Overview & Specifications
1070 aluminum is 1000 industrial pure aluminum, with the general properties of aluminum, such as low density, good electrical and thermal conductivity, corrosion resistance, good plastic processing performance. It cannot be strengthened by heat treatment, but can be improved by cold deformation; the only form of heat treatment is annealing. 1070 pure aluminum has low strength and poor cutting performance. It can be processed into plates, strips, foils, extruded products, etc., and is suitable for use as gaskets and aluminum foils for capacitors.
Product Parameters
| Width | 20-3000mm or Customized , Thickness , 0.1-120mm or Customized |
| Length | 100-12000mm or Customized , Certificate , ISO, SGS, BV |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Brand | 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc. |
| Surface | Coating, Embossing, Drawing, Polishing, Anodizing, etc. |
| OEM Service | Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. |
| Delivery Time | Received 30%, After deposit 7-15 working day |
| Application | Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc. |
| Sample | Free Offers Sample |
| Packaging | Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement |
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Margin |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Margin |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Margin |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Margin |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Margin |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Margin |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Margin |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Margin |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Margin |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Margin |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Margin |
Mechanical Properties
| Tensile Strength (MPa) | Elongation Rate (%) | Yield Strength (MPa) |
|---|---|---|
| ≥75 | ≥ 4.5 | ≥35 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity | Thermal Expansion |
|---|---|---|---|---|
| 2.7 Kg/m³ | 640 °C | 68GPa | 230 w/m K | 23×10 -6 /K |
International Standard Grade Comparison
| Alloy Series | Chinese standard | American standard | European standard |
|---|---|---|---|
| 1xxx series | 1050 | - | - |
| 1050A | - | EN AW-1050A | |
| 1060 | 1060 | - | |
| 1100 | 1100 | - | |
| 2xxx series | 2024 | 2024 | EN AW-2024 |
| 3xxx series | 3003 | 3003 | EN AW-3003 |
| 3004 | 3004 | EN AW-3004 | |
| 3005 | 3005 | EN AW-3005 | |
| 3105 | 3105 | EN AW-3105 | |
| 5xxx series | 5005 | 5005 | EN AW-5005 |
| 5052 | 5052 | EN AW-5052 | |
| 5754 | 5754 | EN AW-5754 | |
| 5083 | 5083 | EN AW-5083 | |
| 5086 | 5086 | EN AW-5086 | |
| 5182 | - | EN AW-5182 | |
| 5049 | - | EN AW-5049 | |
| 5251 | - | EN AW-5251 | |
| 6xxx series | 6061 | 6061 | EN AW-6061 |
| 6082 | - | EN AW-6082 | |
| 7xxx series | 7075 | 7075 | EN AW-7075 |
Product Features & Advantages
- Manufactured to JIS, AISI, ASTM, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Aluminum Plate solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
