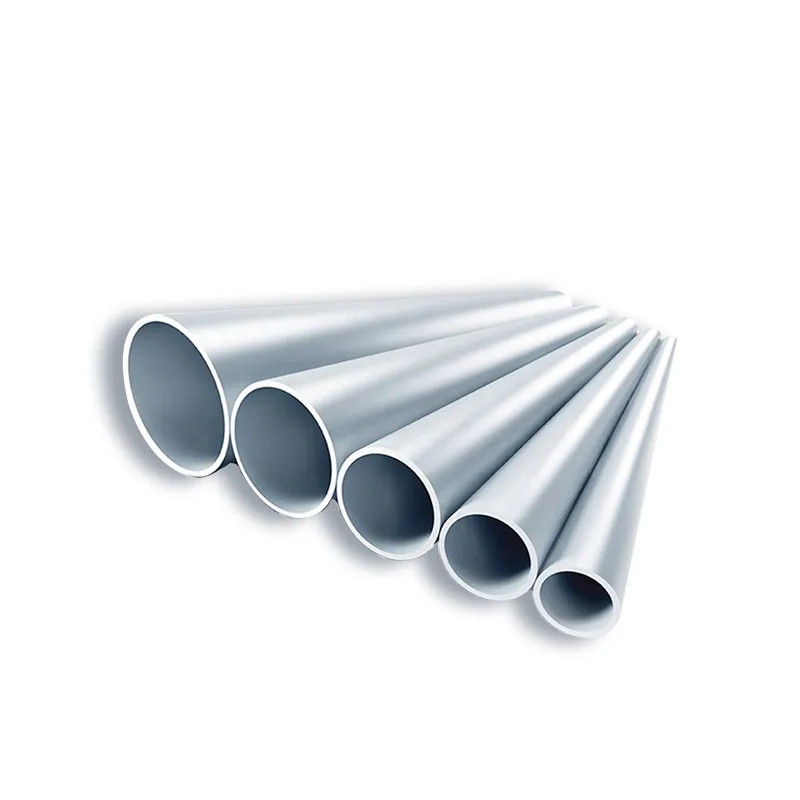

3003 Aluminum Pipe
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
Click to Zoom
Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC
3003 Aluminum Pipe - Technical Overview & Specifications
3003 aluminum alloy is a medium strength alloy with very good atmospheric corrosion resistance, very good weldability and good cold formability. Compared with 1000 series alloys, it has better mechanical properties, especially at high temperatures.
Product Parameters
| Wall thickness | 0.4-20mm or customized , Length , 5-2000mm or customized |
| Outer diameter | 10-2500mm or customized , Certificate , ISO.SGS.BV |
| Standard | He, AiSi, ASTM, GB, DIN, EN etc. |
| Brand | 1000 Series:1050 1060 1070 1100 1200 1235 etc. 3000Series:3003 3004 3005 3104 3105 3A21 etc. 5000 Series:5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc. 6000 Series:6061 6063 6082 6A02 etc. 7000 Series:7050 7475 7075 etc. 8000 Series:8A06 8011 8090 etc. |
| Surface | Coating, embossing, drawing, polishing, anodizing, etc. |
| OEMService | Punching, cutting special size, making flat surface, surface treatment, etc. |
| Delivery time | received. 30% After deposit 7-15 working day |
| Application | Construction, shipbuilding, decoration, industry, manufacturing, machinery, hardware and other fields |
| Sample | Free OffersSample |
| Packaging | Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement |
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 10 7 0 | 0.2 0 | 0. 25 | 0.0 4 | 0.03 | 0.03 | - | 0.0 4 | 0.03 | 0.0 5 | - | 99. 7 0 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Allowance |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Allowance |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Allowance |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Allowance |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Allowance |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Allowance |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Allowance |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Allowance |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Allowance |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Allowance |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Allowance |
Mechanical Properties
| Tensile Strength (MPa) | Test stress (MPa) | Hardness HB | ElongationRate (%) |
|---|---|---|---|
| 95-135 | ≥ 35 | 28 | 10 |
Physical Performance
| Density | Melting Point | thermal expansion | Thermal conductivity | Resistivity |
|---|---|---|---|---|
| 2.7 3 Kg/m³ | 655 °C | 23.1(10 -6 /℃) | 190 W/m.K | 0.034× 10 -6 Ω.m |
International Standard Grade Comparison
| Alloy Series | Chinese standard | American standard | European standard |
|---|---|---|---|
| 1xxx series | 1050 | - | - |
| 1050A | - | EN AW-1050A | |
| 1060 | 1060 | - | |
| 1100 | 1100 | - | |
| 2xxx series | 2024 | 2024 | EN AW-2024 |
| 3xxx series | 3003 | 3003 | EN AW-3003 |
| 3004 | 3004 | EN AW-3004 | |
| 3005 | 3005 | EN AW-3005 | |
| 3105 | 3105 | EN AW-3105 | |
| 5xxx series | 5005 | 5005 | EN AW-5005 |
| 5052 | 5052 | EN AW-5052 | |
| 5754 | 5754 | EN AW-5754 | |
| 5083 | 5083 | EN AW-5083 | |
| 5086 | 5086 | EN AW-5086 | |
| 5182 | - | EN AW-5182 | |
| 5049 | - | EN AW-5049 | |
| 5251 | - | EN AW-5251 | |
| 6xxx series | 6061 | 6061 | EN AW-6061 |
| 6082 | - | EN AW-6082 | |
| 7xxx series | 7075 | 7075 | EN AW-7075 |
Product Features & Advantages
- Manufactured to He, AiSi, ASTM, GB, DIN, EN etc. with strict dimensional tolerance and surface quality
- Reliable Aluminum Pipe solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
