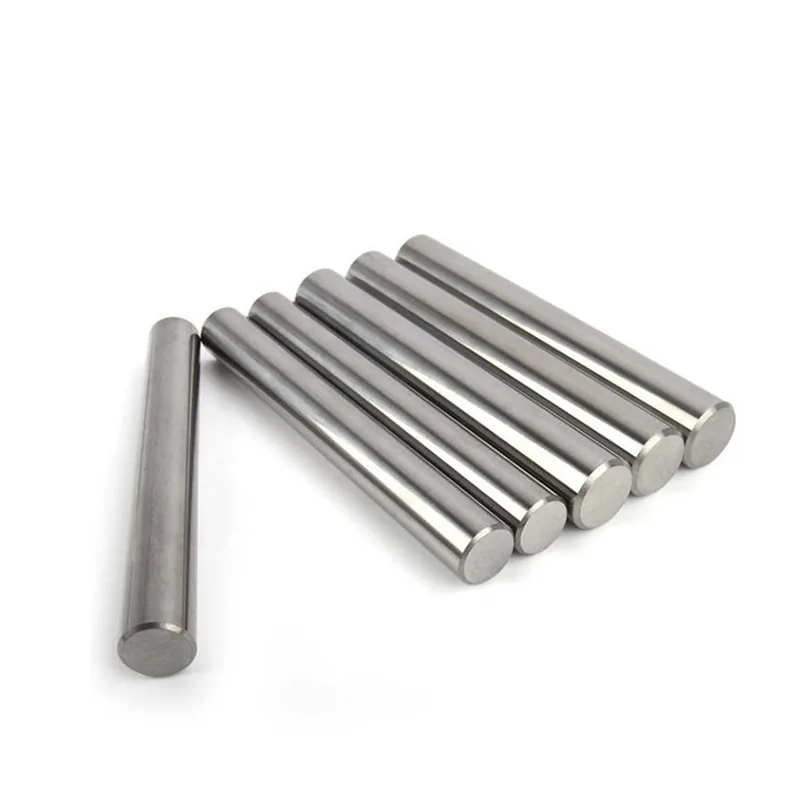

420 Stainless Steel Bar
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
420 Stainless Steel Bar - Technical Overview & Specifications
420 is a hardenable martensitic stainless steel that contains at least 12% chromium, just enough to provide corrosion resistance. It has good ductility in the annealed condition, but can be hardened to a minimum Rockwell hardness of 50 HRC, which is the highest hardness in the 12% chromium scale. Due to its hardening properties, 420 are not often welded, although this is possible. Martensitic stainless steel is designed for high hardness, and sometimes other properties will be affected to a certain extent. The corrosion resistance is lower than that of ordinary austenite grades, and its effective operating range is limited by its ductility loss at sub-zero temperatures and strength loss due to excessive tempering at high temperatures. The best corrosion resistance is obtained when the metal is hardened and subjected to surface grinding or polishing.
Product Parameters
| Product Name | 420 Stainless Steel Bar |
| Type | Steel Bar |
| Outer Diameter | Round Bar , 4mm-500mm |
| Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) |
| Square Bar | 18mm-47mm (11/16″ to 1-3/4″) |
| Flat Steel | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized |
| Length | 1-6 meters, Length can be customized |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
| Surface | Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc. |
| Scope of Application | Stainless steel bars are used in a variety of industries such as shipbuilding, Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement, Heavy earthmoving equipment and construction, etc. |
Chemical Composition
| C | Si | Mn | Cr | S | P |
|---|---|---|---|---|---|
| ≤ 0.15 | ≤1.0 | ≤1.0 | 12.0～14.0 | ≤ 0.03 | ≤ 0.04 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
|---|---|---|---|
| ≥ 634 | ≥ 440 | ≥ 20 | Annealing ≤ 223HB; quenching and tempering ≥ 192HB |
Physical Performance
| Density( g/cm³ ) | Modulus of Elasticity( Gpa ) | Coefficient of Thermal Expansion( 10 -6 /°C ) | Coefficient of Thermal Conductivity( W/m * K ) | Resistivity( ΜΩ. cm ) |
|---|---|---|---|---|
| 7 .74 | 200 | 10.2 | 24.9 | 55 |
International Standard Grade Comparison
| No | China | Japan | USA | South Korea | Germany | India | Australia | Taiwan, China | |
|---|---|---|---|---|---|---|---|---|---|
| GB | JIS | ASTM | UNS | KS | DIN | BIS | AS | CNS | |
| Austenitic stainless steel | |||||||||
| 1 | 12Cr17Mn6Ni5N | SUS201 | 201 | S20100 | STS201 | 1.4372 | 10Cr17Mn6Ni4N20 | 201-2 | 201 |
| 2 | 12Cr18Mn9Ni5N | SUS202 | 202 | S20200 | STS202 | 1.4373 | - | - | 202 |
| 3 | 12Cr17Ni7 | SUS301 | 301 | S20200 | STS301 | 1.4319 | 10Cr17Ni7 | 301 | 301 |
| 4 | 06Cr19Ni10 | SUS304 | 304 | S30400 | STS304 | 1.4301 | 07Cr18Ni9 | 304 | 304 |
| 5 | 022Cr19Ni10 | SUS304L | 304L | S30403 | STS304L | 1.4306 | 02Cr18Ni11 | 304L | 304L |
| 6 | 06Cr19Ni10N | SUS304N1 | 304N | S30451 | STS304N1 | 1.4315 | - | 304N1 | 304N1 |
| 7 | 06Cr19Ni9NbN | SUS304N2 | XM21 | S30452 | STS304N2 | - | - | 304N2 | 304N2 |
| 8 | 022Cr19Ni10N | SUS304LN | 304LN | S30453 | STS304LN | - | - | 304LN | 304LN |
| 9 | 10Cr18Ni12 | SUS305 | 305 | S30500 | STS305 | 1.4303 | - | 305 | 305 |
| 10 | 06Cr23Ni13 | SUS309S | 309S | S30908 | STS309S | 1.4833 | - | 309S | 309S |
| 11 | 06Cr25Ni20 | SUS310S | 310S | S31008 | STS310S | 1.4845 | - | 310S | 310S |
| 12 | 06Cr17Ni12Mo2 | SUS316 | 316 | S31600 | STS316 | 1.4401 | 04Cr17Ni12Mo2 | 316 | 316 |
| 13 | 06Cr17Ni12Mo2Ti | SUS316Ti | 316Ti | S31635 | - | 1.4571 | 04Cr17Ni12MoTi20 | 316Ti | 316Ti |
| 14 | 022Cr17Ni12Mo2 | SUS316L | 316L | S31603 | STS316L | 1.4404 | ~02Cr17Ni12Mo2 | 316L | 316L |
| 15 | 06Cr17Ni12Mo2N | SUS316N | 316N | S31651 | STS316N | - | - | 316N | 316N |
| 16 | 022Cr17Ni13Mo2N | SUS316LN | 316LN | S31653 | STS316LN | 1.4429 | - | 316LN | 316LN |
| 17 | 06Cr18Ni12Mo2Cu2 | SUS316J1 | - | - | STS316J1 | - | - | 316J1 | 316J1 |
| 18 | 022Cr18Ni14Mo2Cu2 | SUS316J1L | - | - | STS316J1L | - | - | - | 316J1L |
| 19 | 06Cr19Ni13Mo3 | SUS317 | 317 | S31700 | STS317 | - | - | 317 | 317 |
| 20 | 022Cr19Ni13Mo3 | SUS317L | 317L | S31703 | STS317L | 1.4438 | - | 317L | 317L |
| 21 | 06Cr18Ni11Ti S | SUS321 | 321 | S32100 | STS321 | 1.4541 | 04Cr18Ni10Ti20 | 321 | 321 |
| 22 | 06Cr18Ni11Nb | SUS347 | 347 | S34700 | STS347 | 1.4550 | 04Cr18Ni10Nb40 | 347 | 347 |
| Duplex stainless steel | |||||||||
| 1 | - | SUS329J1 | 329 | S32900 | STS329J1 | 1.4477 | - | 329J1 | - |
| 2 | 022Cr23Ni5Mo3N | - | S32205 | F60 | - | 1.4462 | - | 2205 | 2205 |
| 3 | 022Cr25Ni7Mo4N | - | S32750 | F53 | - | 1.4410 | - | 2507 | 2507 |
| Ferritic stainless steel | |||||||||
| 1 | 06Crl3Al | SUS405 | 405 | S40500 | STS405 | 1.4002 | 04Cr13 | 405 | 405 |
| 2 | 022Cr11Ti | SUH409 | 409 | S40900 | STS409 | 1.4512 | - | 409L | 409L |
| 3 | 022Cr12 | SUS410L | - | - | STS410L | - | - | 410L | 410L |
| 4 | 10Cr17 | SUS430 | 430 | S43000 | STS430 | 1.4016 | 05Cr17 | 430 | 430 |
| 5 | 10Cr17Mo | SUS434 | 434 | S43400 | STS434 | 1.4113 | - | 434 | 434 |
| 6 | 022Cr18NbTi | - | - | S43940 | - | 1.4509 | - | 439 | 439 |
| 7 | 019Cr19Mo2NbTi | SUS444 | 444 | S44400 | STS444 | 1.4521 | - | 444 | 444 |
| Martensitic stainless steel | |||||||||
| 1 | 12Cr12 | SUS403 | 403 | S40300 | STS403 | - | - | 403 | 403 |
| 2 | 12Cr13 | SUS410 | 410 | S41000 | STS410 | 1.4006 | 12Cr13 | 410 | 410 |
| 3 | 20Cr13 | SUS420J1 | 410 | S42000 | STS420J1 | 1.4021 | 20Cr13 | 420 | 420J1 |
| 4 | 30Cr13 | SUS420J2 | - | - | STS420J2 | 1.4028 | 30 Cr13 | 420J2 | 420J2 |
| 5 | 68Cr17 | SUS440A | 440A | S44002 | STS440A | - | - | 440A | 440A |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Stainless Steel Bar solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Scope of Application
Stainless steel bars are used in a variety of industries such as shipbuilding, Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement, Heavy earthmoving equipment and construction, etc.
