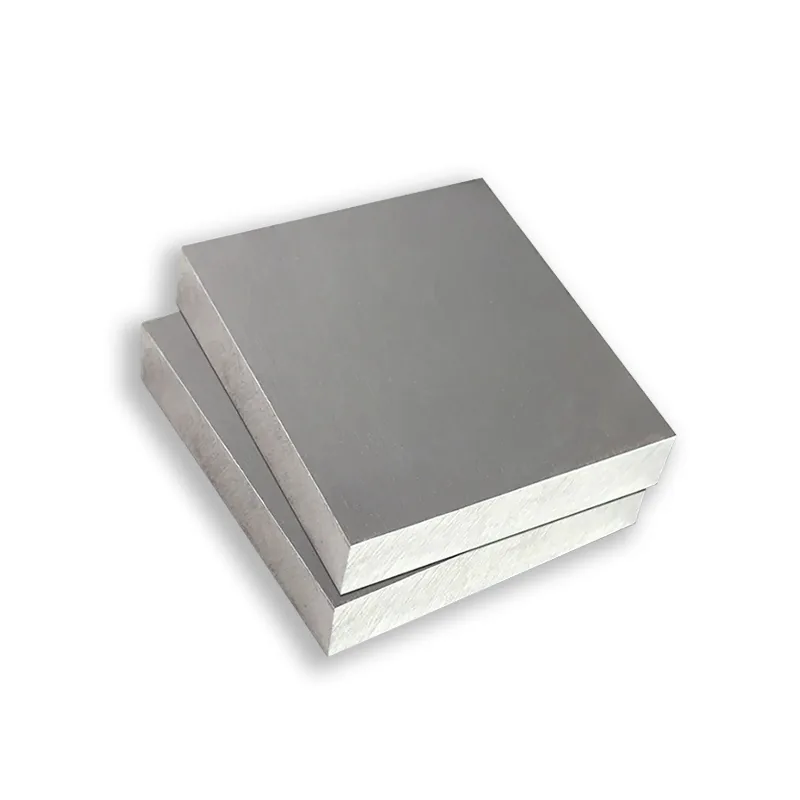

5083 Aluminum Plate
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
Click to Zoom
Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC
5083 Aluminum Plate - Technical Overview & Specifications
5083 aluminum is a non-heat-treatable alloy known for its resistance to extreme environments, including seawater corrosion and industrial chemicals. Although Al-5083 has limited machinability due to its strength, it is a material for marine and aquatic applications and is commonly used in the shipbuilding industry. Other uses for this alloy include transportation applications such as railroads, trucks, and car bodies, as well as pressure vessels and food processors.
Product Parameters
| Width | 20-3000mm or Customized , Thickness , 0.1-120mm or Customized |
| Length | 100-12000mm or Customized , Certificate , ISO, SGS, BV |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Brand | 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc. |
| Surface | Coating, Embossing, Drawing, Polishing, Anodizing, etc. |
| OEM Service | Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. |
| Delivery Time | Received 30%, After deposit 7-15 working day |
| Application | Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc. |
| Sample | Free Offers Sample |
| Packaging | Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement |
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Margin |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Margin |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Margin |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Margin |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Margin |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Margin |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Margin |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Margin |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Margin |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Margin |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Margin |
Mechanical Properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate (%) | Hardness (HV) |
|---|---|---|---|
| 290 | 145 | 22 | 87 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
|---|---|---|---|
| 2.65 Kg/m³ | 591-638 °C | 70.3GPa | 117W/m.K |
International Standard Grade Comparison
| Alloy Series | Chinese standard | American standard | European standard |
|---|---|---|---|
| 1xxx series | 1050 | - | - |
| 1050A | - | EN AW-1050A | |
| 1060 | 1060 | - | |
| 1100 | 1100 | - | |
| 2xxx series | 2024 | 2024 | EN AW-2024 |
| 3xxx series | 3003 | 3003 | EN AW-3003 |
| 3004 | 3004 | EN AW-3004 | |
| 3005 | 3005 | EN AW-3005 | |
| 3105 | 3105 | EN AW-3105 | |
| 5xxx series | 5005 | 5005 | EN AW-5005 |
| 5052 | 5052 | EN AW-5052 | |
| 5754 | 5754 | EN AW-5754 | |
| 5083 | 5083 | EN AW-5083 | |
| 5086 | 5086 | EN AW-5086 | |
| 5182 | - | EN AW-5182 | |
| 5049 | - | EN AW-5049 | |
| 5251 | - | EN AW-5251 | |
| 6xxx series | 6061 | 6061 | EN AW-6061 |
| 6082 | - | EN AW-6082 | |
| 7xxx series | 7075 | 7075 | EN AW-7075 |
Product Features & Advantages
- Manufactured to JIS, AISI, ASTM, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Aluminum Plate solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Aluminum Plate
Customer Reviews & Mill Quality Audits
4.9 / 5.0|86+ Verified Inspections
4.9
Overall Satisfaction from Global EPC & Steel Buyers
100% Mill Test Reports (MTC)
EN 10204 3.1 Chemical & Tensile Verification Passed
Port Inspection Ready
SGS, BV & Cotecna Third-Party Audits Supported
SEND INQUIRY FOR 5083 Aluminum Plate
Please leave your specific requirements (size, grade, quantity, destination port). Our sales engineer will reply within 2 hours.
DIRECT MILL INQUIRY
WhatsApp: +8615951317561
E-mail: [email protected]
FACTORY WORKSHOP
Factory Workshop 1
Factory Workshop 2
Factory Workshop 3
Factory Workshop 4
3/6
CUSTOMER VISIT
Customer visit
Customer visit
Customer visit
CERTIFICATE OF HONOR
COOPERATIVE PARTNER
FAQ
QOnce the products received by customer were found not comply with the products or contract demands, what will you do?
AA: We will compensate the customer for all the loss without any hesitation.
QDo you provide samples Is it free or extra?
AA: Yes, we could offer free samples.
QWhat certifications do your products have?
AA: We have ISO 9001, SGS, EWC and other certifications.
QWhat kind of payment terms would you accept?
AA: We always do T/T.30% T/T as deposit,70% T/T as balance.
QWhat is the delivery time?
AA: 10-15 days
QWhat is your MOQ?
AA: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
