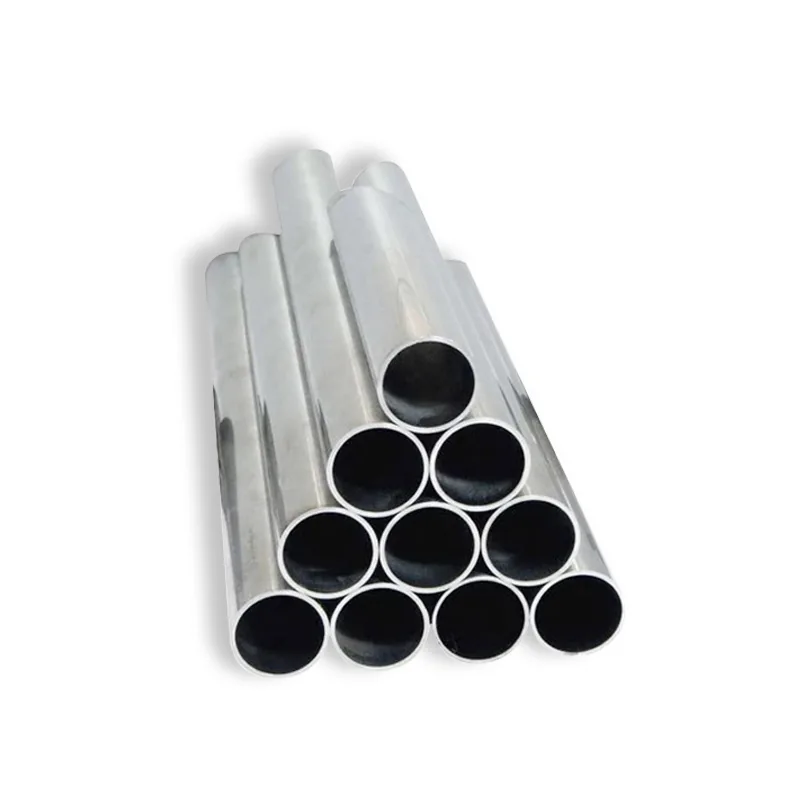

5A05 Aluminum Pipe

Name: 5A05 Aluminum Pipe
Brand: Ironex China
SKU: 5A05

Prime Mill Grade | Certified China Exporter & Factory Direct Supply

Click to Zoom

Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC

5A05 Aluminum Pipe - Technical Overview & Specifications

5A05 aluminum is a multifunctional alloy with a wide range of properties and uses. It has excellent corrosion resistance, excellent weldability, good formability and machinability, and medium strength. Due to its versatility, this alloy is used in many industries and applications-from automotive components to cookware to electrical enclosures.

Product Parameters

Wall thickness	0.4-20mm or customized , Length , 5-2000mm or customized
Outer diameter	10-2500mm or customized , Certificate , ISO.SGS.BV
Standard	He, AiSi, ASTM, GB, DIN, EN etc.
Brand	1000 Series :1050 1060 1070 1100 1200 1235 etc. 3000 Series :3003 3004 3005 3104 3105 3A21 etc. 5000 Series :5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc. 6000 Series :6061 6063 6082 6A02 etc. 7000 Series :7050 7475 7075 etc. 8 000 Series : 8A06 8011 8090 etc.
Surface	Coating, embossing, drawing, polishing, anodizing, etc.
OEM Service	Punching, cutting special size, making flat surface, surface treatment, etc.
Delivery time	received. 30% After deposit 7-15 working day
Application	Construction, shipbuilding, decoration, industry, manufacturing, machinery, hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
10 7 0	0.2 0	0. 25	0.0 4	0.03	0.03	-	0.0 4	0.03	0.0 5	-	99. 7 0
1100	0.95 Si Fee	0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Mechanical Properties

Tensile Strength (MPa)	Yield strength (MPa)	Elongation Rate ( % )
≥ 225	≥ 110	≥ 15

Physical Performance

Density	Melting Point	modulus of elasticity	Thermal conductivity	Resistance Rate
2. 65 Kg/m³	570 °C	72 GPa	121 W/m.K	0.0 58 x10 ^-6 Ω.m

International Standard Grade Comparison

Alloy Series	Chinese standard	American standard	European standard
1xxx series	1050	-	-
1050A	-	EN AW-1050A
1060	1060	-
1100	1100	-
2xxx series	2024	2024	EN AW-2024
3xxx series	3003	3003	EN AW-3003
3004	3004	EN AW-3004
3005	3005	EN AW-3005
3105	3105	EN AW-3105
5xxx series	5005	5005	EN AW-5005
5052	5052	EN AW-5052
5754	5754	EN AW-5754
5083	5083	EN AW-5083
5086	5086	EN AW-5086
5182	-	EN AW-5182
5049	-	EN AW-5049
5251	-	EN AW-5251
6xxx series	6061	6061	EN AW-6061
6082	-	EN AW-6082
7xxx series	7075	7075	EN AW-7075

Product Features & Advantages

Manufactured to He, AiSi, ASTM, GB, DIN, EN etc. with strict dimensional tolerance and surface quality
Reliable Aluminum Pipe solution for construction, machinery and industrial projects
Custom processing available: cutting, bending, decoiling, slitting and surface polishing
Mill Test Certificate (MTC) and full inspection provided
