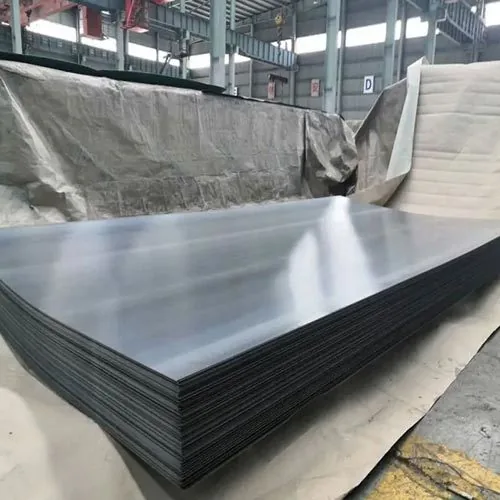

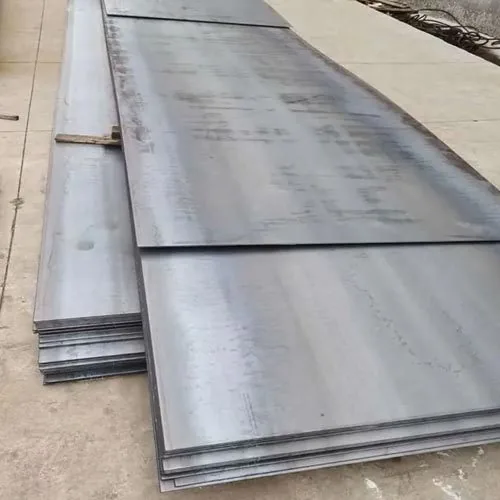

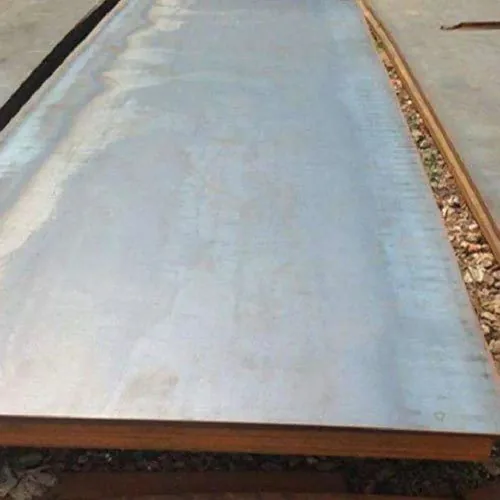

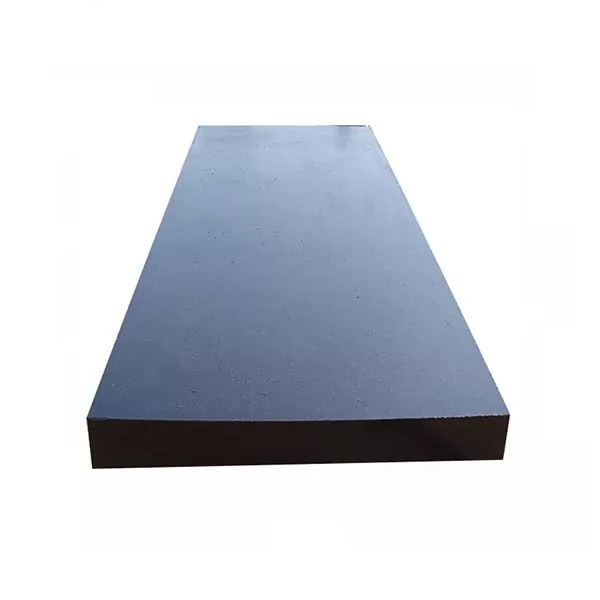

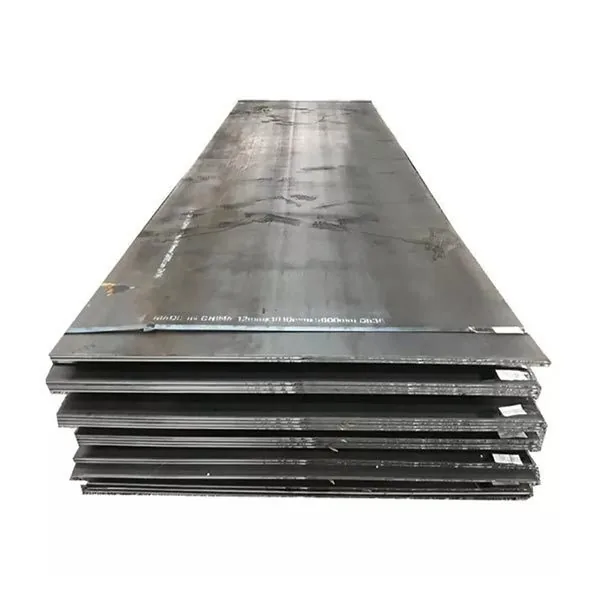

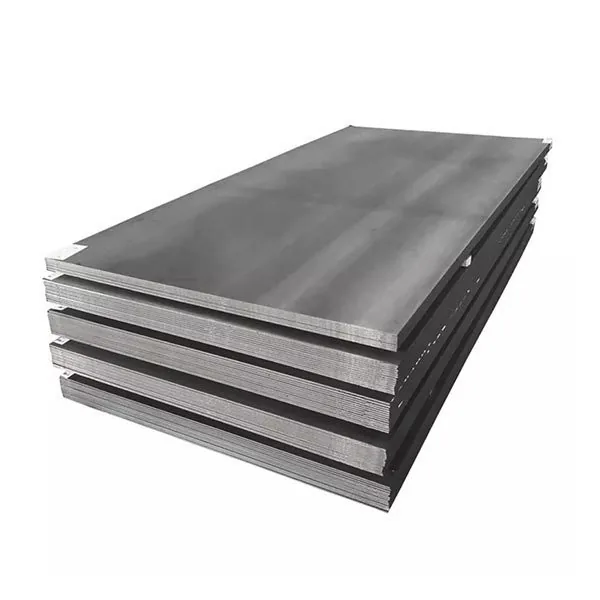

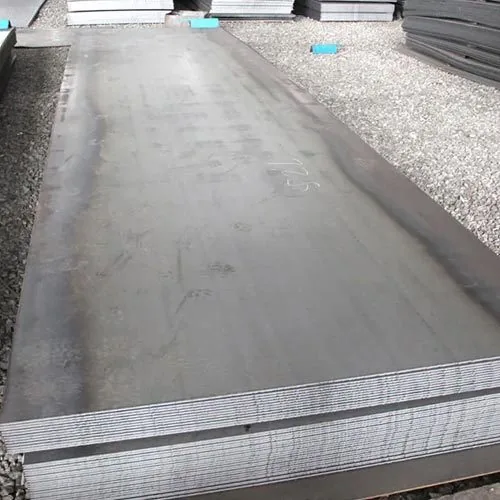

A36/Q235/S235JR Carbon Steel Plate
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
A36/Q235/S235JR Carbon Steel Plate - Technical Overview & Specifications
A36 is a low-carbon steel containing trace amounts of manganese, phosphorus, sulfur, silicon and other elements such as copper. A36 has good weldability and high yield strength, and is the structural steel plate specified by the engineer. ASTM A36 steel plate is often manufactured into a variety of structural steel parts. This grade is used for welded, bolted or riveted construction of bridges and buildings, as well as for general structural purposes. Due to its low yield point, A36 carbon plate can be used to design lighter weight structures and equipment, and provide good weldability. Construction, energy, heavy equipment, transportation, infrastructure and mining are the industries where A36 panels are commonly used.
Product Parameters
| Product Name | A36/Q235/S235JR Carbon Steel Plate |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| C | Cu | Fe | Mn | P | Si | S |
|---|---|---|---|---|---|---|
| 0.25~0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
Mechanical Properties
| A36 | Limit Tensile Strength | Tensile Strength, Yield Strength | Elongation at Break (Unit: 200mm) | Elongation at Break (Unit: 50mm) | Modulus of Elasticity | Bulk Modulus (Typical for Steel) | Poisson's Ratio | Shear Modulus |
|---|---|---|---|---|---|---|---|---|
| Metric | 400~550MPa | 250MPa | 20.0% | 23.0% | 200GPa | 140GPa | 0.260 | 79.3GPa |
| Imperial | 58000~79800psi | 36300psi | 20.0% | 23.0% | 29000ksi | 20300ksi | 0.260 | 11500ksi |
International Standard Grade Comparison
| National Standard GB | European Standard EN | American Standard ASTM | German Standard DIN, WNr | Japanese Standard JIS | French Standard AFNOR | British Standard BS | Canada HG |
|---|---|---|---|---|---|---|---|
| Q235B | S235JR | A283C | St37-2 | SM400A | E24-2 | 40A/40B | 230G |
| Italy UNI | India IS | Switzerland SS | Australia ONORM | Norway NS | Spain UNE | International Standards ISO | Portugal NP |
| Fe360B | IS2062 | 1311/1312 | RSt360B | NS12123 | AE235B-FN | E235B/Fe360B | FE360-B |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Plate solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
