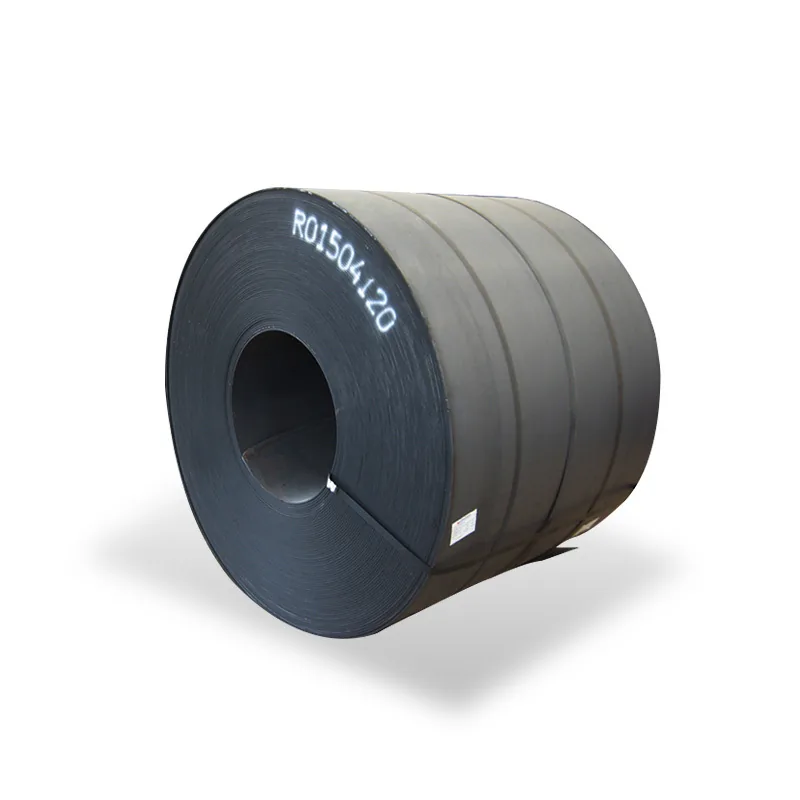

A516 Pressure Vessel Carbon Steel Coil
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
A516 Pressure Vessel Carbon Steel Coil - Technical Overview & Specifications
ASTM A515 is the same as ASME SA-515 and is the standard specification for welding carbon steel pressure vessel plates for high temperature service in boilers and other pressure vessels. A515/SA-515 plate can be divided into 3 grades according to its minimum tensile strength: grade 60, grade 65 and grade 70.
Product Parameters
| Product Name | A516 Pressure Vessel Carbon Steel Coil |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 45mm-2200mm |
| Length | Custom Size |
| Thickness | Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Mechanical Properties
| ASTM A516 | Tensile Strength | Yield | Lower Limit of Elongation (%) | |
|---|---|---|---|---|
| (MPa) | (MPa) | Gauge Length 50mm | Gauge Length 200mm | |
| Level 55 | 380 ~ 515 | 205 | 27 | 23 |
| Level 60 | 415 ~ 550 | 220 | 25 | 21 |
| Level 65 | 450 ~ 585 | 240 | 23 | 19 |
| Level 70 | 485 ~ 620 | 260 | 21 | 17 |
International Standard Grade Comparison
| American Standard | German Standard | European Standard | English Standard | ||
|---|---|---|---|---|---|
| ASTM | ASME | DIN 17155 | EN 10028 | Material No. | BS1501 |
| Level 60 | SA516 Gr . 60 | HII | P265GH | 1.0425 | 161 430A |
| Level 65 | SA516 Gr . 65 | 17Mn4 | P295GH | 1.0481 | - |
| Level 70 | SA516 Gr . 70 | - | P355GH | - | 224-490 A&B |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Coil solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Customer Reviews & Mill Quality Audits
Overall Satisfaction from Global EPC & Steel Buyers
EN 10204 3.1 Chemical & Tensile Verification Passed
SGS, BV & Cotecna Third-Party Audits Supported
