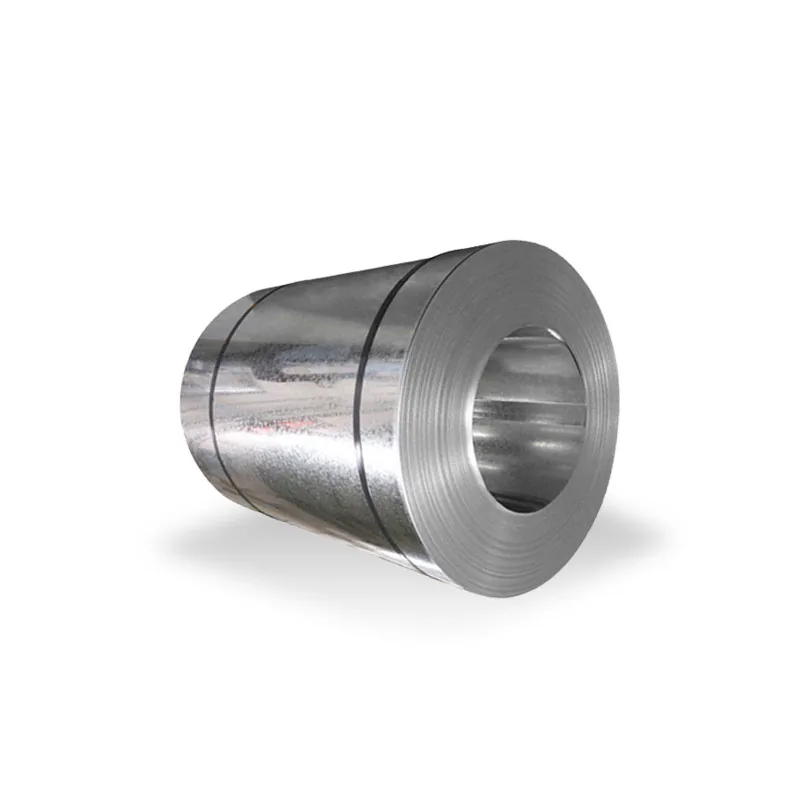

AZ55 Galvalume Steel Coil - Technical Overview & Specifications
AZ55 aluminum zinc plated steel coil is coated with 55% aluminum zinc alloy by hot dip plating process. It has excellent corrosion resistance and can be used in various applications, such as the automotive industry, shipbuilding industry, construction industry, etc. In addition to being an excellent outdoor material, AZ55 aluminized zinc steel coil also has many other advantages. For example, it can be used for electrical equipment manufacturing or decoration, such as fences. In addition to these uses, this steel can also be used in various industrial applications because of its good mechanical properties and corrosion resistance.
Product Parameters
| Product Name | AZ55 Galvalume Steel Coil |
| Thickness | 0.12mm-6.00mm |
| Width | 600mm-1500mm |
| Length | 1m-12m, Support Customization |
| Standard | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
| Thickness of Aluminum Zinc Coating | 30-185g/m² |
| Content of Al-Zn Coating | Al: 55%, Zn: 43.5%, Si: 1.5% |
Chemical Composition
| Al | Zn | Si | Fe | Cu | Cd | Pb | Sn | Ni | Close Cr |
|---|---|---|---|---|---|---|---|---|---|
| 55-58 | 41-43 | 1.5-2 | 0.25 | 0.03 | 0.05 | 0.01 | 0.05 | 0.05 | 0.05 |
Mechanical Properties
| Grade | Yield Strength MPa≥ | Tensile Strength MPa≥ | Elongation A%≥ |
|---|---|---|---|
| DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
| DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
| DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
| DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
| S220GD Z/ZM/AM | 220 | 300 | 20 |
| S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
| S280GD Z/ZM/AM | 280 | 360 | 18 |
| S300GD A/AM | 300 | 380 | 18 |
| S320GD Z/ZM/AM | 320 | 390 | 17 |
| S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
| S450GD A/AM | 450 | 480 | 15 |
| S550GD Z/ZM/AZ/AM | 550 | 550 | - |
International Standard Grade Comparison
| Chinese Standard | European Standards | American Standard | Japanese Standard |
|---|---|---|---|
| DC51D+AZ | DX51D+AZ | CS Type B, Type C | SGLCC |
| DC52D+AZ | DX52D+AZ | DS | SGLCD |
| S250GD+AZ | S250GD+AZ | 255 | - |
| S300GD+AZ | - | - | - |
| S350GD+AZ | S350GD+AZ | 345 | Class1 SGLC490 |
| S550GD+AZ | S550GD+AZ | 550 | SGLC570 |
Product Features & Advantages
- Manufactured to AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Galvalume Steel Coil solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
