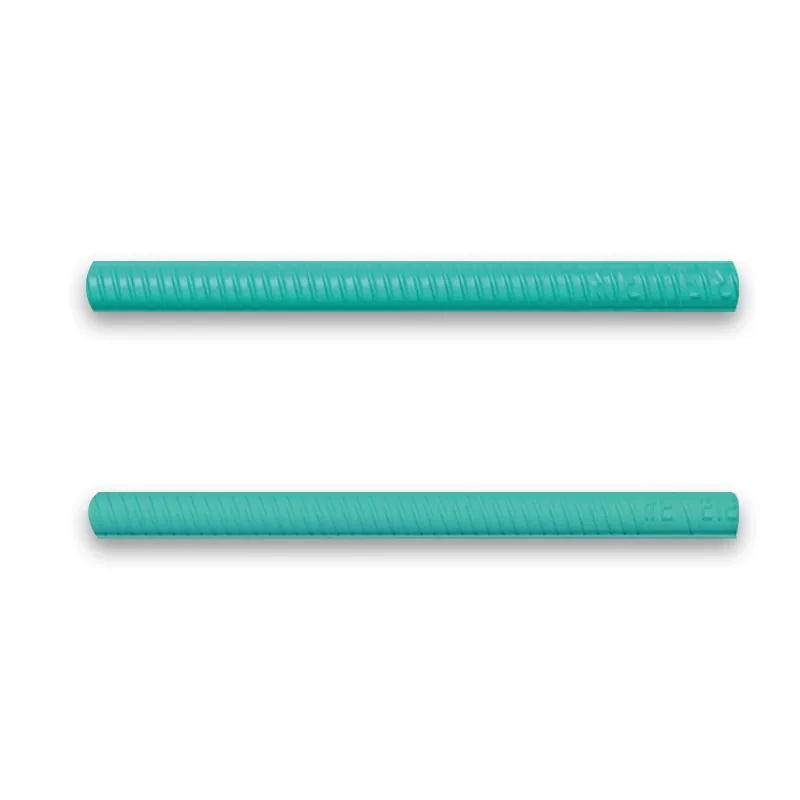

Epoxy Resin Coated Steel Bar
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
Epoxy Resin Coated Steel Bar - Technical Overview & Specifications
Epoxy resin coated steel bar is an epoxy resin protective coating prepared on the surface of ordinary steel bar by electrostatic spraying powder high temperature sintering process. The coating has excellent chemical corrosion resistance and does not react with acid and alkali. And the coating has anti-permeability, so it can delay the corrosion medium (such as water, oxygen, chloride, etc.) contact with the steel, so that its corrosion resistance life is greatly extended. China's epoxy coated steel bars adopt national standards GB/T 25826-2010 and Ministry of Housing and Construction standard JG/T 502-2016 (replacing JG 3042-1997). American standards are ASTM A775/A775M and ASTM A934/A934M, and British standard is BS ISO 14654.
Product Parameters
| Grade of Base Material Reinforcement | HRB400, HRB400E, HRB500 HPB300 (Hot Rolled Round Steel Bar) |
| Coating Technology | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. |
| Coating Standard | GB/T 25826-2010, JG/T502-2016 |
| Conventional Diameter | 10／12／14／16／18／20／22／25／28／30／32／36／38／40／50mm |
| Custom Diameter | 6mm-50mm |
| Standard Length | 6m/9m/12m (Length can be customized) |
| Use | Anti-floating anchors, bridges, railways, seaports, nuclear power, sewage tanks, petrochemical and chemical projects with corrosion resistance requirements |
Mechanical Properties
| Chinese Rebar Code | Yield Strength ( Mpa） | Tensile Strength ( Mpa） | Carbon Content |
|---|---|---|---|
| HRB400, HRBF400, HRB400E, HRBF400E | 400 | 540 | ≤ 0.25 |
| HRB500, HRBF500, HRB500E, HRBF500E | 500 | 630 | ≤ 0.25 |
| HRB600 | 600 | 730 | ≤ 0.28 |
International Standard Grade Comparison
| USA | Japan | Germany | U.K. | France | Italy | Spain | Switzerland | China | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AISI/SAE | JIS | W‐nr. | DIN | BS | EN | AFNOR | UNI | UNE | SS | GB |
| A570.36 | STKM 12A | 1.0038 | RSt.37‐2 | 4360 | ‐ | E 24‐2 | ‐ | ‐ | 1311 | 15 |
| - | STKM 12C | - | - | 40 C | - | Ne | - | - | - | - |
| 1015 | ‐ | 1.0401 | C15 | 080M15 | ‐ | CC12 | C15, C16 | F.111 | 1350 | 15 |
| 1020 | ‐ | 1.0402 | C22 | 050A20 | 2C | CC20 | C20, C21 | F.112 | 1450 | 20 |
| 1213 | SUM22 | 1.0715 | 9SMn28 | 230M07 | 1A | S250 | CF9SMn28 | F.2111 | 1912 | Y15 |
| 11SMn28 | ||||||||||
| 12L13 | SUM22L | 1.0718 | 9SMnPb28 | ‐ | ‐ | S250Pb | CF9SMnPb28 | 11SMnPb28 | 1914 | ‐ |
| ‐ | ‐ | 1.0722 | 10SPb20 | ‐ | ‐ | 10PbF2 | CF10Pb20 | 10SPb20 | ‐ | ‐ |
| 1215 | ‐ | 1.0736 | 9SMn36 | 240M07 | 1B | S300 | CF9SMn36 | 12SMn35 | ‐ | Y13 |
| 12L14 | ‐ | 1.0737 | 9SMnPb36 | ‐ | ‐ | S300PB | CF9SMnPb36 | 12SMnP35 | 1926 | ‐ |
| 1015 | S15C | 1.1141 | Ck15 | 080M15 | 32C | XC12 | C16 | C15K | 1370 | 15 |
| 1025 | S25C | 1.1158 | Ck25 | ‐ | ‐ | ‐ | ‐ | ‐ | ‐ | 25 |
| A572 - 60 | ‐ | 1.890 | StE380 | 4360 55 | ‐ | ‐ | FeE390KG | ‐ | 2145 | ‐ |
| 1035 | ‐ | 1.0501 | C35 | 060A35 | ‐ | CC35 | C35 | F.113 | 1550 | 35 |
| 1045 | ‐ | 1.0503 | C45 | 080M46 | ‐ | CC45 | C45 | F.114 | 1650 | 45 |
| 1140 | ‐ | 1.0726 | 35S20 | 212M36 | 8M | 35MF4 | ‐ | F210G | 1957 | ‐ |
| 1039 | ‐ | 1.1157 | 40Mn4 | 150M36 | 15 | 35M5 | ‐ | ‐ | ‐ | 40Mn |
| 1335 | SMn438(H) | 1.1167 | 36Mn5 | ‐ | ‐ | 40M5 | ‐ | 36Mn5 | 2120 | 35Mn2 |
| 1330 | SCMn1 | 1.1170 | 28Mn6 | 150M28 | 14A | 20M5 | C28Mn | ‐ | ‐ | 30Mn |
| 1035 | S35C | 1.1183 | Cf35 | 060A35 | ‐ | XC38TS | C36 | ‐ | 1572 | 35Mn |
| 1045 | S45C | 1.1191 | Ck45 | 080M46 | ‐ | XC42 | C45 | C45K | 1672 | Ck45 |
| 1050 | S50C | 1.1213 | Cf53 | 060A52 | ‐ | XC48TS | C53 | ‐ | 1674 | 50 |
| 1055 | ‐ | 1.0535 | C55 | 070M55 | 9 | ‐ | C55 | ‐ | 1655 | 55 |
| 1060 | ‐ | 1.0601 | C60 | 080A62 | 43D | CC55 | C60 | ‐ | ‐ | 60 |
| 1055 | S55C | 1.1203 | Ck55 | 070M55 | ‐ | XC55 | C50 | C55K | ‐ | 55 |
| 1060 | S58C | 1.1221 | Ck60 | 080A62 | 43D | XC60 | C60 | ‐ | 1678 | 60Mn |
| 1095 | ‐ | 1.1274 | Ck101 | 060A96 | ‐ | XC100 | ‐ | F.5117 | 1870 | ‐ |
| W1 | SK3 | 1.1545 | C105W1 | BW1A | ‐ | Y105 | C36KU | F.5118 | 1880 | ‐ |
| W210 | SUP4 | 1.1545 | C105W1 | BW2 | ‐ | Y120 | C120KU | F.515 | 2900 | ‐ |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Steel Rebar solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
