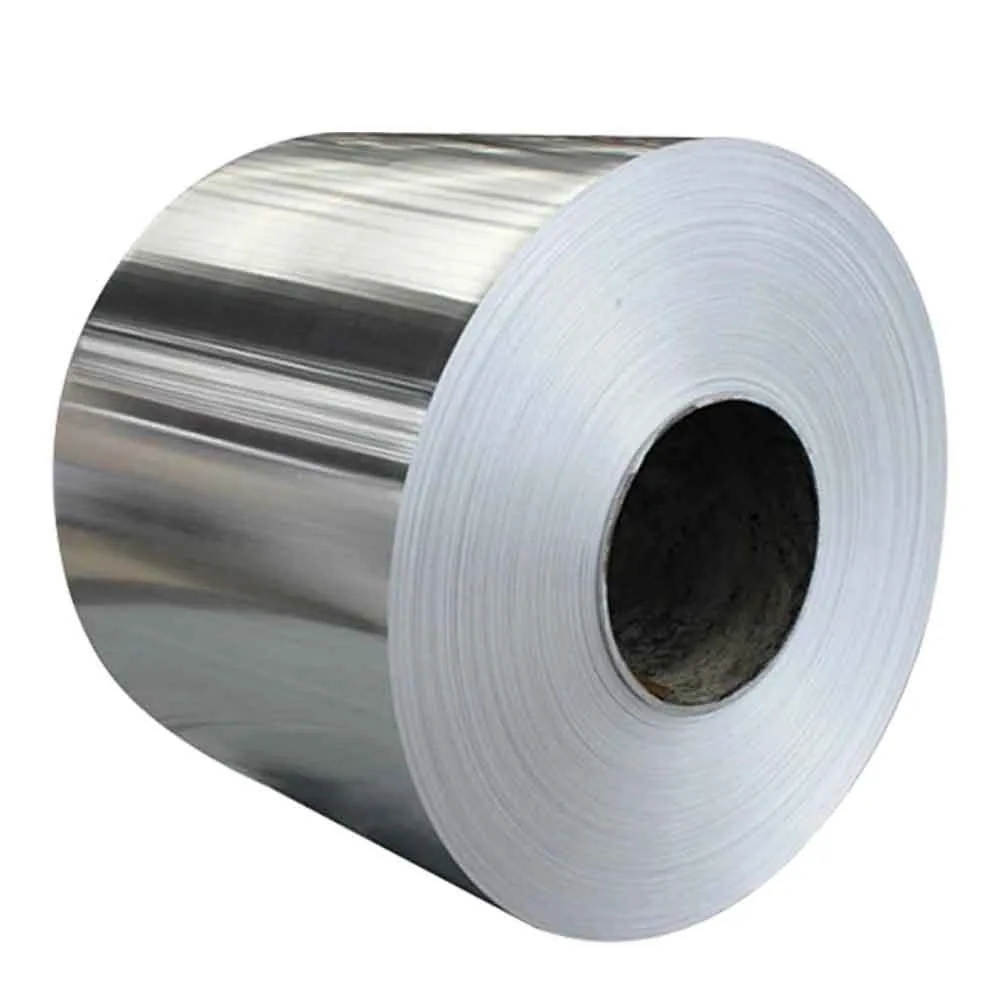

Tinplate

Name: 1395456313777381376 Tinplate
Brand: Ironex China
SKU: 1395456313777381376

Prime Mill Grade | Certified China Exporter & Factory Direct Supply

Click to Zoom

Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC

Tinplate - Technical Overview & Specifications

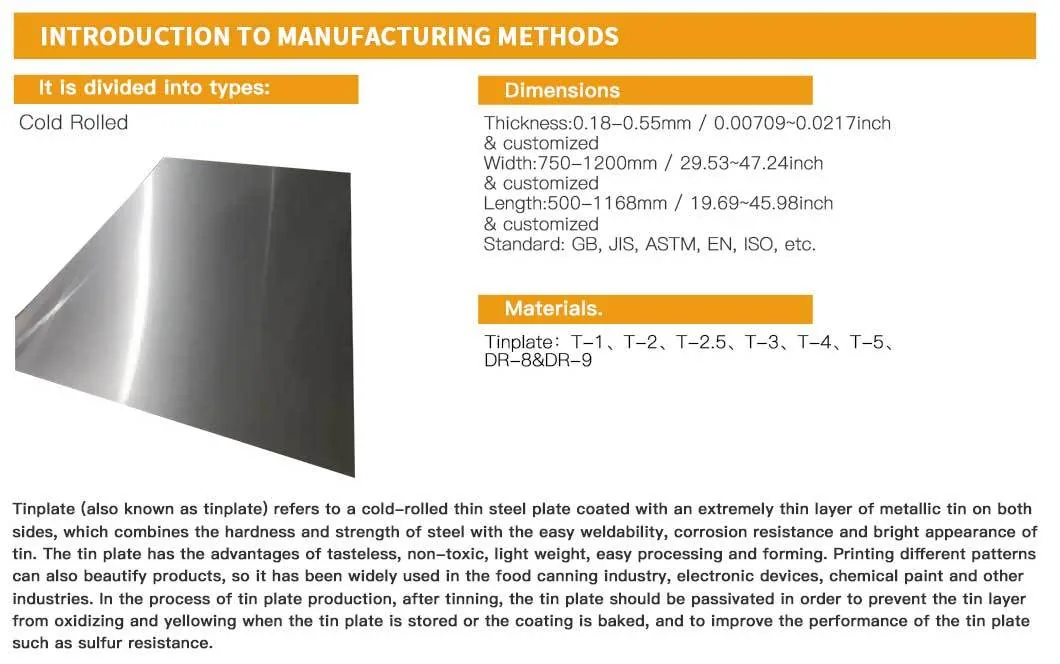

Tinplate (also known as tinplate) refers to a cold-rolled thin steel plate coated with an extremely thin layer of metallic tin on both sides, which combines the hardness and strength of steel with the easy weldability, corrosion resistance and bright appearance of tin.

Product Parameters

Product Name	Tinplate
Standard	GB, JIS, ASTM, EN, ISO, etc.
Tin Coating Weight	Equal weight tin plating, differential weight tin plating
Surface State	Bright surface, stone surface, silvery surface, matt surface
Thickness	0.18-0.55 mm
Width	750- 1200 mm or as required
Length	500- 1168 mm or as required
Raw Strip Type	MR, L, D
Hardness	T-2, T-2.5, T-3, T-3.5, T-4, T-5
Application	Food packaging, electronic appliances, building materials, etc
Raw Strip Type	Characteristics
MR	The content of non-metallic inclusion is similar to L steel, the limitation of residual elements content is not as strict as L steel, and it has good corrosion resistance, suitable for most purposes.
L	The content of non-metallic inclusion and residual elements of Cu, Ni, Cr, Mo are low, used for applications of high requirements in corrosion resistance.
D	Used for deep drawing or preventing stretch mark purposes.
Surface States
Code	Type , Characteristics
B	Bright Surface , Tin plating on smooth surface with stone pattern, then reflow the tin layer to obtain the bright surface.
R	Stone Surface , Tin plating on surface with a certain direction of the stone pattern, then reflow the tin layer to obtain the bright surface.
S	Silvery Surface , Tin plating on rough and mattsurface, then reflow the tin layer to obtain the bright surface.
Surface States
Code	Type , Characteristics
B	Bright Surface , Tin plating on smooth surface with stone pattern, then reflow the tin layer to obtain the bright surface.
R	Stone Surface , Tin plating on surface with a certain direction of the stone pattern, then reflow the tin layer to obtain the bright surface.
S	Silvery Surface , Tin plating on rough and mattsurface, then reflow the tin layer to obtain the bright surface.
M	Matt Surface , Tin plating on matt surfacewithout reflowing.

Product Features & Advantages

Manufactured to GB, JIS, ASTM, EN, ISO, etc. with strict dimensional tolerance and surface quality
Reliable Tinplate solution for construction, machinery and industrial projects
Custom processing available: cutting, bending, decoiling, slitting and surface polishing
Mill Test Certificate (MTC) and full inspection provided
