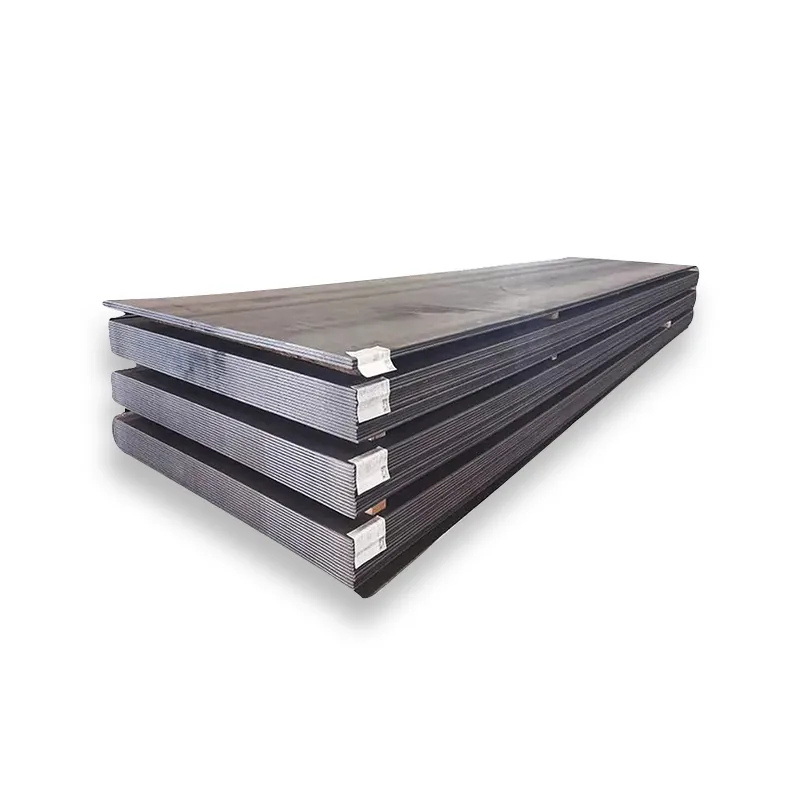

A285 Pressure Vessel Steel Plate
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
A285 Pressure Vessel Steel Plate - Technical Overview & Specifications
ASTM A285 Boiler Plate is a common carbon steel used for fusion welding of pressure vessel equipment such as boilers, storage tanks, heat exchangers, etc. ASTM A285 Boiler vessel steel consists of 3 grades: Grade A, Grade B, and Grade C. ASTM A285 boiler vessel plates have good welding performance and can meet the fusion welding requirements of pressure vessel equipment.
Product Parameters
| Product Name | A285 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling , C old Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary , Wire Drawing , Laminated Film |
Mechanical Properties
| A285 | Thickness mm | Yield Mpa | Tensile Strength Mpa | Elongation ( % ) |
|---|---|---|---|---|
| Class A | 6-50 | 165 | 310-450 | 30% |
| 50-200 | 165 | 310-450 | 27% | |
| Class B | 6-50 | 185 | 345-485 | 28% |
| 50-200 | 185 | 345-485 | 25% | |
| Class C | 6-50 | 205 | 380-515 | 27% |
| 50-200 | 205 | 380-515 | 23% |
International Standard Grade Comparison
| National Standard | American Standard | European Standard | German Standard | Japan Standard | France | United Kingdom | Italy | Australia | ISO | India |
|---|---|---|---|---|---|---|---|---|---|---|
| 20 | A285 | P235GH (1.0345) | 1.0345 | SB410 | A37AP | 141-360 | Fe360-1KG | St35KW | P3 | Grade1 |
| A285Gr.C | ASt35 | SGV410 | A37CP | 161Gr.360 | Fe360-1KW |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Plate solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Customer Reviews & Mill Quality Audits
Overall Satisfaction from Global EPC & Steel Buyers
EN 10204 3.1 Chemical & Tensile Verification Passed
SGS, BV & Cotecna Third-Party Audits Supported
