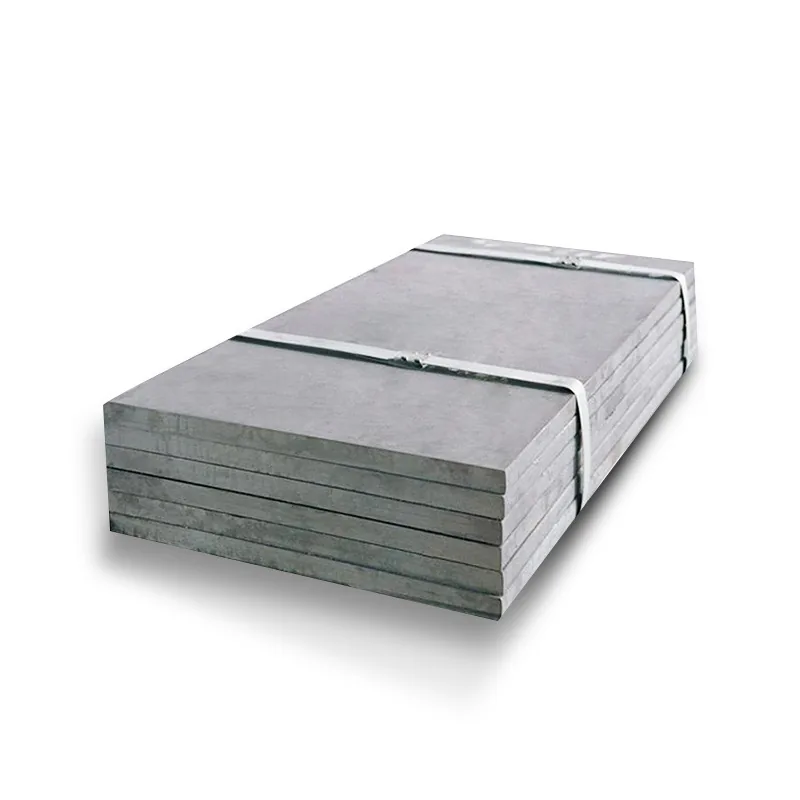

A515 Pressure Vessel Steel Plate
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
A515 Pressure Vessel Steel Plate - Technical Overview & Specifications
ASTM A515 is the same as ASME SA-515 and is the standard specification for welding carbon steel pressure vessel plates for high temperature service in boilers and other pressure vessels. A515/SA-515 plate can be divided into 3 grades according to its minimum tensile strength: grade 60, grade 65 and grade 70.
Product Parameters
| Product Name | A515 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling , Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary , Wire Drawing , Laminated Film |
Mechanical Properties
| A 515 | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate And 2 And (50mm) min. | Impact Test Temperature(°C) |
|---|---|---|---|---|
| Grade 60 | 415 - 550 | 220 | 25 | - 20, 40, -60 |
| Grade 65 | 450 - 585 | 240 | 23 | -20, 40, -60 |
| Grade 70 | 485 - 620 | 260 | 21 | -20, 40, -60 |
International Standard Grade Comparison
| ASTM A515 | National Standard GB | Japanese Standard JIS | German Standard DIN | Legal Standard AFNOR | Conspire UNI | English Standard BS |
|---|---|---|---|---|---|---|
| Level 60 | GB713 20g | JIS G3103 SB410 | DIN 1715 1.0425 | A48 CP, AP, FP | Fe 460-2-KW | Gr 360, 400 |
| Level 65 | GB713 22g | JIS G3103 SB450 | DIN 1715 1.0435 | A48 CP, AP, FP | Fe 460-2-KW | Gr 360, 400 |
| Level 70 | - | JIS G3103 SB480 | DIN 1715 1.0844 | A48 CP, AP, FP | Fe 460-2-KW | Gr 360, 400 |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Plate solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
