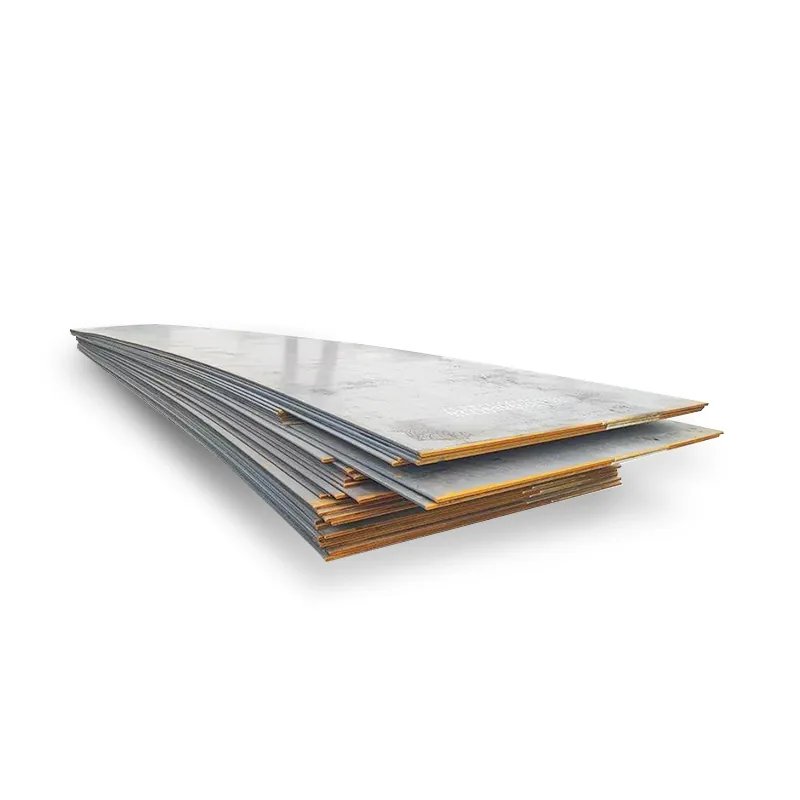

A516 Pressure Vessel Steel Plate
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
A516 Pressure Vessel Steel Plate - Technical Overview & Specifications
ASTM A516 grades: 55, 60, 65, 70, is a high-quality boiler and pressure vessel steel, very suitable for low to medium temperature applications. The material is widely used by industrial boiler and pressure vessel manufacturers that provide manufacturing support for the oil, gas and petrochemical industries. The steel has good weldability and excellent notch toughness.
Product Parameters
| Product Name | A516 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling , Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary , Wire Drawing , Laminated Film |
Mechanical Properties
| ASTM A516 | Tensile Strength | Yield | Lower limit of Elongation (%) | |
|---|---|---|---|---|
| (MPa) | (MPa) | Gauge Length 50mm | Gauge Length 200mm | |
| Level 55 | 380 ~ 515 | 205 | 27 | 23 |
| Level 60 | 415 ~ 550 | 220 | 25 | 21 |
| Level 65 | 450 ~ 585 | 240 | 23 | 19 |
| Level 70 | 485 ~ 620 | 260 | 21 | 17 |
International Standard Grade Comparison
| American Standard | German Standard | European Standard | English Standard | ||
|---|---|---|---|---|---|
| ASTM | ASME | DIN 17155 | EN 10028 | Material No. | BS1501 |
| Level 60 | SA516 Gr . 60 | HII | P265GH | 1.0425 | 161 430A |
| Level 65 | SA516 Gr . 65 | 17Mn4 | P295GH | 1.0481 | - |
| Level 70 | SA516 Gr . 70 | - | P355GH | - | 224-490 A&B |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Plate solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Customer Reviews & Mill Quality Audits
Overall Satisfaction from Global EPC & Steel Buyers
EN 10204 3.1 Chemical & Tensile Verification Passed
SGS, BV & Cotecna Third-Party Audits Supported
