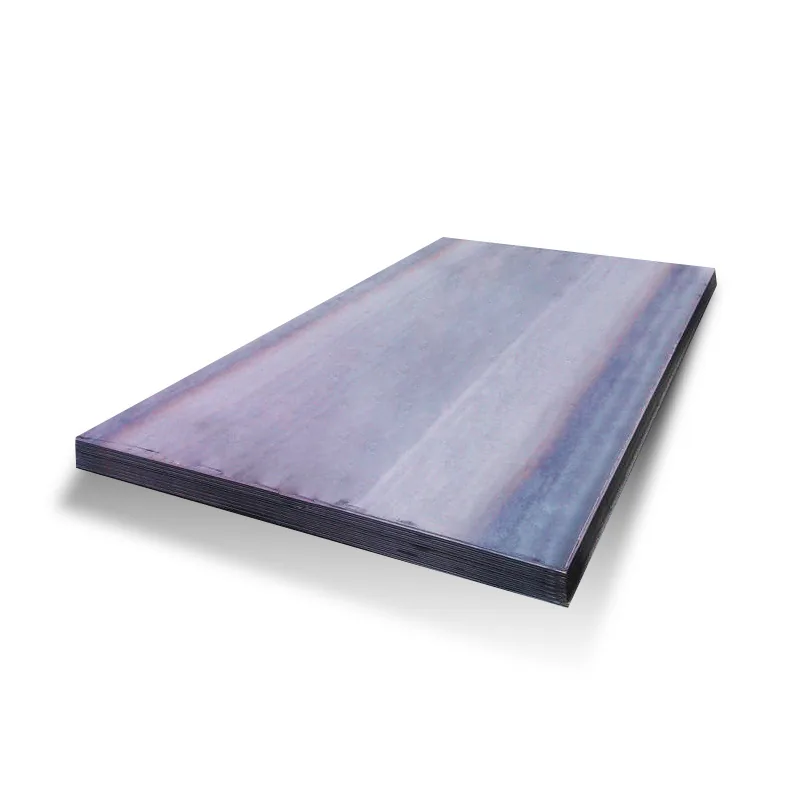

A533 Pressure Vessel Steel Plate

Name: A533 Pressure Vessel Steel Plate
Brand: Ironex China
SKU: A533

Prime Mill Grade | Certified China Exporter & Factory Direct Supply

Click to Zoom

Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC

A533 Pressure Vessel Steel Plate - Technical Overview & Specifications

ASTM A533 Boiler vessel plates are manganese-molybdenum and manganese-molybdenum-nickel alloy steel plates suitable for welding pressure vessels. Often with quenching and tempering heat treatment, that is, quenching and tempering state supply. ASTM A533 boiler vessel steel is available in five different strength grades: Class A, Class B, Class C, Class D, and Class E. There are three levels of each category: level 1, level 2 and level 3.

Product Parameters

Product Name	A533 Pressure Vessel Steel Plate
Production Process	Hot Rolling , Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary , Wire Drawing , Laminated Film

Mechanical Properties

A533	Tensile Strength Ksi(MPa)	Yield Strength Ksi(MPa)	Elongation G auge Length 2in.[50mm],%
Grade1	80-100[550-690]	50[345]	18
Grade2	90-115[620-795]	70[485]	16
Grade3	100-125[690-860]	83[570]	16

Product Features & Advantages

Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
Reliable Carbon Steel Plate solution for construction, machinery and industrial projects
Custom processing available: cutting, bending, decoiling, slitting and surface polishing
Mill Test Certificate (MTC) and full inspection provided
