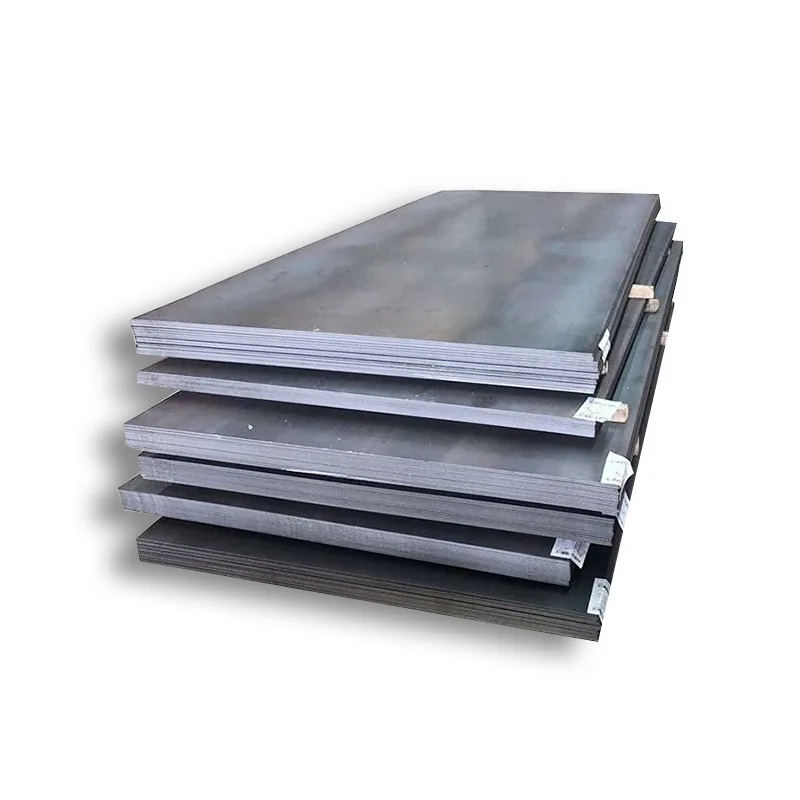

A537 Pressure Vessel Steel Plate

Name: A537 Pressure Vessel Steel Plate
Brand: Ironex China
SKU: A537

Prime Mill Grade | Certified China Exporter & Factory Direct Supply

Click to Zoom

Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC

A537 Pressure Vessel Steel Plate - Technical Overview & Specifications

ASTM A537 Boiler vessel plates are heat treated carbon manganese silicon steel plates used in pressure vessel fabrication. ASTM A537 Boiler Container Plate has 3 grades, namely Grade 1, Grade 2, and Grade 3.

Product Parameters

Product Name	A537 Pressure Vessel Steel Plate
Production Process	Hot Rolling , Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary , Wire Drawing , Laminated Film

Mechanical Properties

A537	Thickness mm	Yield Mpa	Tensile Strength Mpa	Elongation %
Level 1	≤ 65	345	485-620	22
65-100	310	450-585	-
100-150	-	-	18
Level 2	≤ 65	415	550-690	22
65-100	380	515-655	20
100-150	315	485-620	-
Level 3	≤ 65	380	550-690	22
66-100	345	515-655	20
101-150	275	485-620	-

Product Features & Advantages

Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
Reliable Carbon Steel Plate solution for construction, machinery and industrial projects
Custom processing available: cutting, bending, decoiling, slitting and surface polishing
Mill Test Certificate (MTC) and full inspection provided
