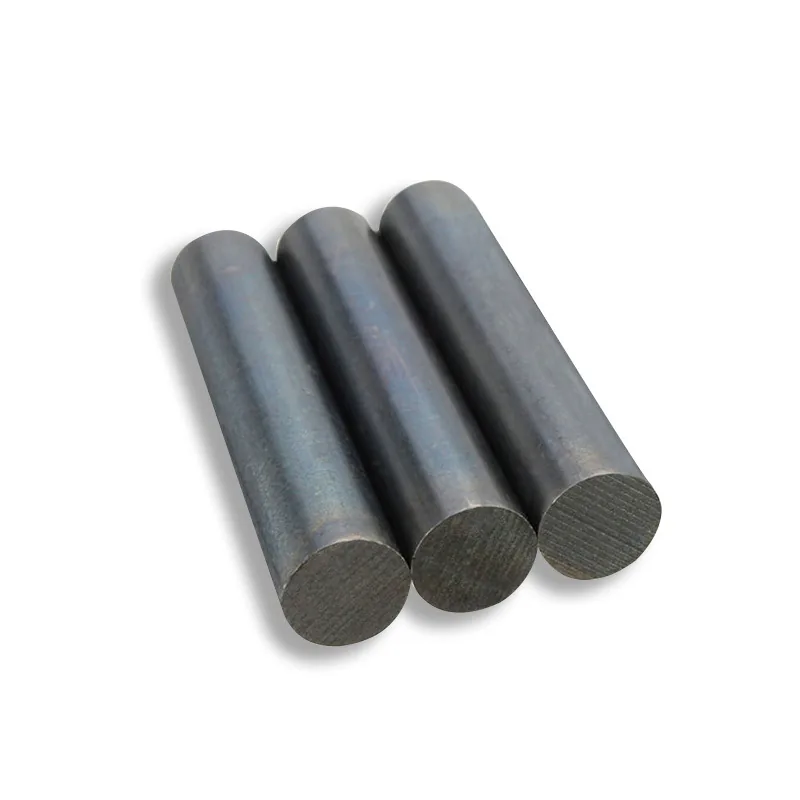

AISI/SAE 5160 Carbon Steel Bar
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
Click to Zoom
Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC
AISI/SAE 5160 Carbon Steel Bar - Technical Overview & Specifications
Steel is a versatile material. One steel alloy is AISI 5160, which is an American Society for Testing and Materials (ASTM) designation for spring steel.
Product Parameters
| Product Name | AISI/SAE 5160 Carbon Steel Bar |
| Standard | EN / DIN / JIS / ASTM / BS / ASME / AISI, etc. |
| Common Round Bar Specifications | 3.0 - 50.8 mm , Over 50.8 - 300mm |
| Flat Steel Common Specifications | 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm |
| Hexagon Bar Common Specifications | AF5.8mm - 17mm |
| Square Bar Common Specifications | AF2mm - 14mm, AF6.35mm , 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm |
| Length | 1 - 6 meters, Size Accept Custom |
| Diameter(mm) | Hot Rolling R ound Bar , 25 - 600 , Cold Rolling Square Bar , 6 - 50.8 |
| Hot Rolling Square Bar | 21 - 54 , Cold Rolling Hexagon Bar , 9.5 - 65 |
| Cold Rolling Round bar | 6 - 101.6 , Forged Rebar , 200 - 1000 |
| Surface Process | Bright, Polished, Black |
| Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. |
Chemical Composition
| Standard | Grade | C | Si | Mn | Cr | V | P≤ | S≤ |
|---|---|---|---|---|---|---|---|---|
| DIN 17221 | 60SiCr7 | 0.57-0.65 | 1.50-1.80 | 0.70-1.00 | 0.20-0.40 | 0.030 | 0.030 | |
| 55Cr3 | 0.52-059 | ≤ 0.40 | 0.70-1.00 | 0.70-1.00 | 0.025 | 0.025 | ||
| 60Cr3 | 0.56-0.64 | 0.17-0.37 | 0.70-1.00 | 0.70-1.00 | 0.025 | 0.025 | ||
| 50CrV4 | 0.47-0.55 | 0.15-0.40 | 0.70-1.00 | 0.70-1.10 | 0.10-0.20 | 0.030 | 0.030 | |
| JIS G4801 | SUP6 | 0.55-0.65 | 1.50-1.80 | 0.70-1.00 | — | 0.035 | 0.035 | |
| SUP7 | 0.55-0.65 | 1.80-2.20 | 0.70-1.00 | — | 0.035 | 0.035 | ||
| SUP9 | 0.52-0.60 | 0.15-0.35 | 0.65-0.95 | 0.65-0.95 | 0.030 | 0.030 | ||
| SUP9A | 0.56-0.64 | 0.15-0.35 | 0.70-1.00 | 0.70-1.00 | 0.030 | 0.030 | ||
| SUP10 | 0.47-0.55 | 0.15-0.35 | 0.65-0.95 | 0.80-1.10 | 0.15-0.25 | 0.030 | 0.030 | |
| SAE J1268 | 9260/H | 0.55-0.65 | 0.70-1.20 | 0.65-1.10 | ≤0.2 | 0.040 | 0.030 | |
| 5155 | 0.50-0.60 | 0.15-0.35 | 0.65-1.10 | 0.60-1.00 | 0.040 | 0.030 | ||
| 5160/H | 0.55-0.65 | 0.15-0.35 | 0.65-1.10 | 0.60-1.00 | 0.040 | 0.030 | ||
| 6150 | 0.47-0.54 | 0.15-0.35 | 0.60-1.00 | 0.75-1.20 | ≤ 0.15 | 0.040 | 0.030 |
International Standard Grade Comparison
| Standard | Heat Treatment | Mechanical Property [≥] | |||||||
|---|---|---|---|---|---|---|---|---|---|
| GB | SAE | JIS | DIN | Quenching Temprature°C | Quenchant | Temper Stressing°C | Tensile Strength Rm/[N/mm2] | Yield Strength ReL/[N/mm2] | HBW≤ |
| 65Mn | 1066 | - | - | 830 | Oil | 540 | 980 | 785 | 302 |
| 60Si2Mn | 9260 | SUP6 | 60Si7 | 870 | 480 | 1275 | 1180 | 321 | |
| 60Si2MnA | 9260 | SUP7 | 60Si7 | 870 | 440 | 1570 | 1375 | 321 | |
| 55CrMnA | 5155 | SUP9 | 55Cr3 | 830-860 | 460-510 | 1225 | 1080(Rpo 2) | 321 | |
| 60CrMnA | 5160/h | SUP9A | - | 830-860 | 460-520 | 1225 | 1080(Rpo 2) | 321 | |
| 50CrVA | 6150 | SUP10 | 51CrV4 | 850 | 500 | 1275 | 1130 | 321 |
Product Features & Advantages
- Manufactured to EN / DIN / JIS / ASTM / BS / ASME / AISI, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Bar solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Carbon Steel Bar
Customer Reviews & Mill Quality Audits
4.9 / 5.0|86+ Verified Inspections
4.9
Overall Satisfaction from Global EPC & Steel Buyers
100% Mill Test Reports (MTC)
EN 10204 3.1 Chemical & Tensile Verification Passed
Port Inspection Ready
SGS, BV & Cotecna Third-Party Audits Supported
