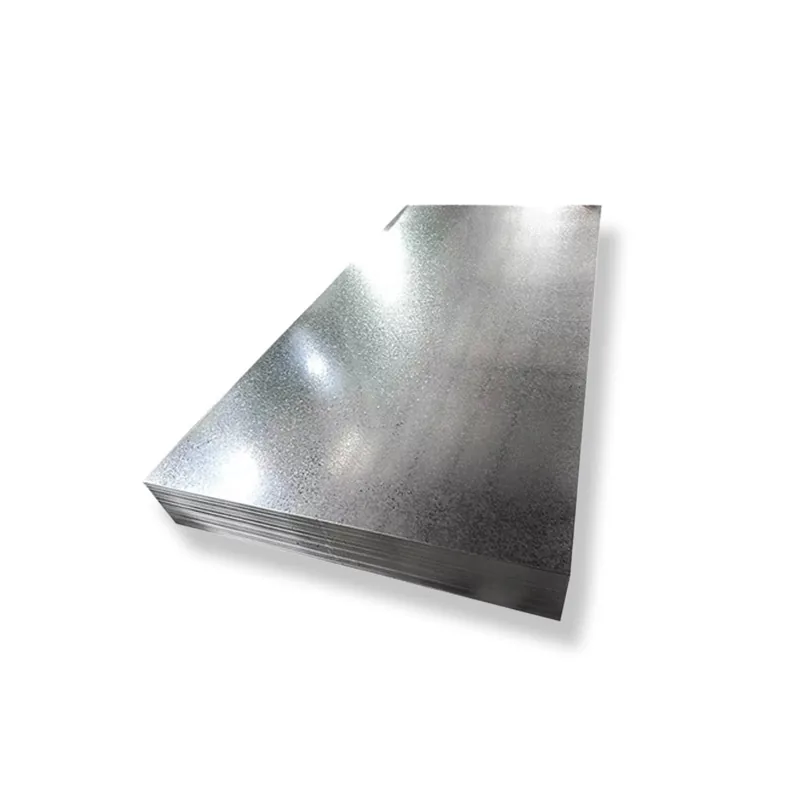

AZ150 Galvalume Steel Sheet
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
AZ150 Galvalume Steel Sheet - Technical Overview & Specifications
The thickness of AZ150 coating is 18 microns on one side and 36 microns on both sides. The coating alloy of the steel consists of 55% aluminium, 43.4 zinc and 1.6 silica. This coating of steel acts as a passive barrier to general corrosion. Once the sheet is exposed to electrolyte or moisture, another coating may form a galvanic cell. This exposure results in spillage of zinc ions and corrosion protection of the exposed steel. It also helps protect steel from trimmed edges and scratches.
Product Parameters
| Product Name | AZ150 Galvalume Steel Sheet |
| Thickness | 0.12mm-6.00mm |
| Width | 600mm-1500mm |
| Length | 1m-12m, Support Customization |
| Standard | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
| Thickness of Aluminum Zinc Coating | 30-185g/m² |
| Content of Al-Zn Coating | Al: 55%, Zn: 43.5%, Si: 1.5% |
Chemical Composition
| Al | Zn | Si | Fe | Cu | Cd | Pb | Sn | Ni | Close Cr |
|---|---|---|---|---|---|---|---|---|---|
| 55-58 | 41-43 | 1.5-2 | 0.25 | 0.03 | 0.05 | 0.01 | 0.05 | 0.05 | 0.05 |
Mechanical Properties
| Grade | Yield Strength MPa≥ | Tensile Strength MPa≥ | Elongation A%≥ |
|---|---|---|---|
| DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
| DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
| DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
| DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
| S220GD Z/ZM/AM | 220 | 300 | 20 |
| S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
| S280GD Z/ZM/AM | 280 | 360 | 18 |
| S300GD A/AM | 300 | 380 | 18 |
| S320GD Z/ZM/AM | 320 | 390 | 17 |
| S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
| S450GD A/AM | 450 | 480 | 15 |
| S550GD Z/ZM/AZ/AM | 550 | 550 | - |
International Standard Grade Comparison
| Chinese Standard | European Standards | American Standard | Japanese Standard |
|---|---|---|---|
| DC51D+AZ | DX51D+AZ | CS Type B, Type C | SGLCC |
| DC52D+AZ | DX52D+AZ | DS | SGLCD |
| S250GD+AZ | S250GD+AZ | 255 | - |
| S300GD+AZ | - | - | - |
| S350GD+AZ | S350GD+AZ | 345 | Class1 SGLC490 |
| S550GD+AZ | S550GD+AZ | 550 | SGLC570 |
Product Features & Advantages
- Manufactured to AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Galvalume Steel Sheet solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
