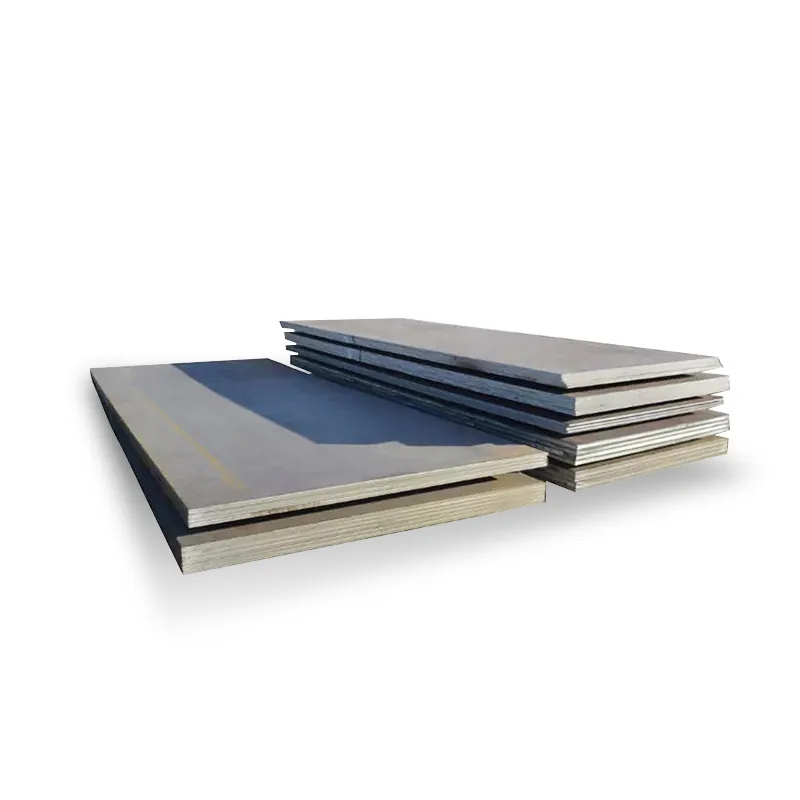

DIN 17155 Pressure Vessel Steel Plate
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
Click to Zoom
Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC
DIN 17155 Pressure Vessel Steel Plate - Technical Overview & Specifications
DIN 17155 pressure vessel steel plate is boiler and pressure vessel steel. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid transportation pipelines.
Product Parameters
| Product Name | DIN 17155 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling , Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary , Wire Drawing , Laminated Film |
International Standard Grade Comparison
| DIN 17155 | Material No. | EN 10028-2 | UNI 5869 | BS 1501 | A 36087 | ASTM | JIS G3115 |
|---|---|---|---|---|---|---|---|
| HI | 1.0345 | P235GH | Fe 360 - 1KW | 161 Gr. 360 / 164 Gr. 360 | A 37 RCI | A 285 Gr. C-A 414 Gr. C/ A 516 Gr. 55 | SPV 24 |
| HII | 1.0425 | P265GH | Fe 410 - 1KW | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | A 42 RCI | A 414 Gr. E / A 516 Gr. 60 | |
| 17Mn4 | 1.0481 | P295GH | Fe 460 - 1KW | 224 Gr. 490 | A 47 RCI | A 414 Gr. F / A 516 Gr. 65 | SPV 32 |
| 19Mn6 | 1.0473 | P355GH | Fe 510 - 1KW | A 52 RCI | A 414 Gr. G | SPV 36 | |
| 15Mo3 | 1.5415 | 16Mo3 | 15 Mo 3 | 1503 - 243 B | 16Mo3 | A 204 Gr. B | |
| 13CrMo44 | 1.7335 | 13CrMo4-5 | 14 CrMo 4.5 | 620 Gr. 27 | 14 CrMo 4.5 | A 387 Gr. 12 | |
| 10CrMo910 | 1.7380 | 10CrMo9-10 | 622 Gr. 31 | A 387 Gr. 22 |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Plate solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Carbon Steel Plate
