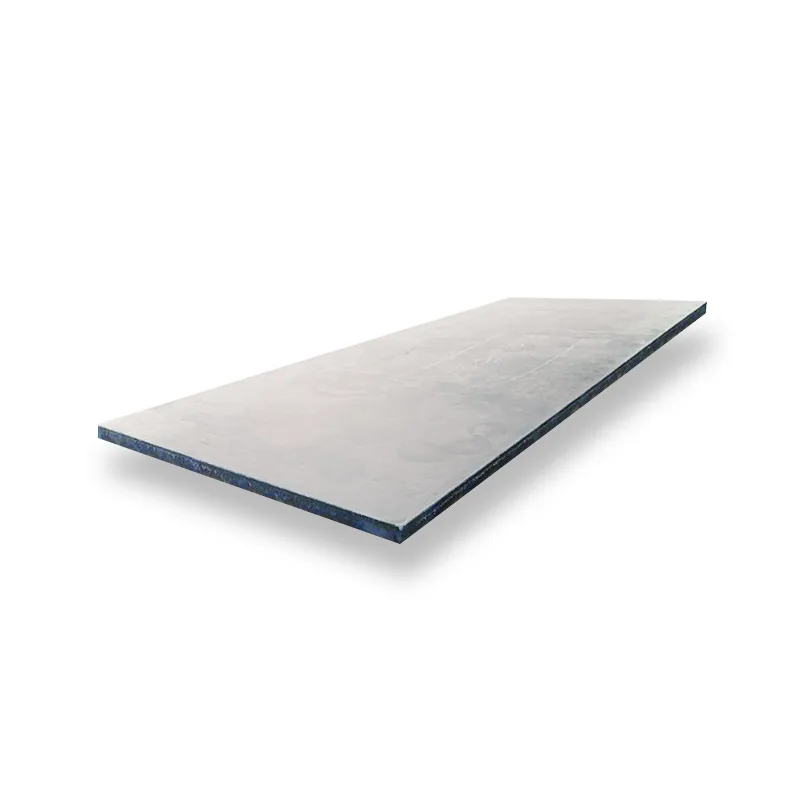

JIS G3103 P296GH/P355GH/P235GH Pressure Vessel Steel Plate
Prime Mill Grade | Certified China Exporter & Factory Direct Supply
Click to Zoom
Origin: China (Mill Direct) China Steel Exporter EN 10204 3.1 MTC
JIS G3103 P296GH/P355GH/P235GH Pressure Vessel Steel Plate - Technical Overview & Specifications
JIS G3103 Boiler Container Plate is a hot-rolled plate of carbon steel and molybdenum alloy steel for Chinese and high temperature boilers and pressure vessels. The main grades of JIS G3103 boiler vessel steel are: SB410, SB450, SB480,SB450M and SB480M.
Product Parameters
| Product Name | JIS G3103 P296GH/P355GH/P235GH Pressure Vessel Steel Plate |
| Production Process | Hot Rolling , Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary , Wire Drawing , Laminated Film |
Mechanical Properties
| Brand | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Gage 2in. [50mm], % |
|---|---|---|---|
| SB410 | 410-550 | 225 | 21 |
| SB450M | 450-590 | 255 | 19 |
| SB450 | 450-590 | 245 | 19 |
| SB480 | 480-620 | 265 | 17 |
| SB480M | 480-620 | 275 | 17 |
International Standard Grade Comparison
| Brand | European Standard | German Standard | Japanese Standard | American Standard |
|---|---|---|---|---|
| SB450 | P296GH | A St45, 17Mn4, StE315 | SPV 315 | A 515 gr.55 |
| SB450M | P296GH | A St45, 17Mn4, StE315 | SPV 315 | A 515 gr.55 |
| SB480 | P355GH | A St52, 19Mn8, StE355 | SPV 355 | A537 CL1 |
| SB480M | P355GH | A St52, 19Mn8, StE355 | SPV 355 | A537 CL1 |
| SB410 | P235GH | A St35, HI, StE255 | SPV 235 | A285 Gr.A/B/C |
Product Features & Advantages
- Manufactured to ASTM, AISI, JIS, GB, DIN, EN, etc. with strict dimensional tolerance and surface quality
- Reliable Carbon Steel Plate solution for construction, machinery and industrial projects
- Custom processing available: cutting, bending, decoiling, slitting and surface polishing
- Mill Test Certificate (MTC) and full inspection provided
Applications & Industries
Carbon Steel Plate
